LIS331HH MEMS digital output motion sensor:ultra low-power high full-scale 3-axes nano accelerometer

The LIS331HH is an ultra low-power high performance high full-scale three axes linear accelerometer belonging to the "nano" family, with digital I²C/SPI serial interface standard output.

The device features ultra low-power operational modes that allow advanced power saving and smart sleep to wake-up functions.

The LIS331HH has dynamically user selectable full scales of ±6g/±12g/±24g and it is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz. The self-test capability allows the user to check the functioning of the sensor in the final application.

The device contains 2 indipendent interrupt engines able to recognize dedicated inertial events.

Thresholds and timing of interrupt generators are programmable by the end user on the fly.

The LIS331HH is available in small thin plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

技术特性

Wide supply voltage, 2.16 V to 3.6 V
Low voltage compatible IOs, 1.8 V
Ultra low-current mode consumption down to 10 μA
±6g/±12g/±24g dynamically selectable fullscale
I²C/SPI digital output interface
16 bit data output
2 independent programmable interrupt engines
Sleep to wake-up function
6D orientation detection
Embedded self-test
10000 g high shock survivability
ECOPACK® RoHS and "Green" compliant

应用领域

Pedometer
Gaming and virtual reality input devices
Motion activated functions
Impact recognition and logging
Intelligent power saving for handheld devices
Vibration monitoring and compensation

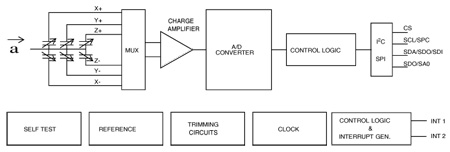

功能框图

LIS331HH 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
LIS331HH	Active		1000	LLGA 16 3x3x1.0	Tray		LIS331HH
LIS331HHTR	Active		1000	LLGA 16 3x3x1.0	Tape And Reel		LIS331HHTR

DATASHEET

描述	版本	大小
LIS331HH :DS6508: MEMS digital output motion sensor ultra low-power high full-scale 3-axes “nano” accelerometer	1	673KB

USER MANUALS

描述	版本	大小
UM1049: Unico GUI: software guide	2	1838KB
UM1064: Software guide for Unico Lite	2	349KB

BOARDS AND TOOLS

型号	描述
STEVAL-MKI092V1	LIS331HH adapter board for standard DIL 24 socket
