M48T37V TIMEKEEPER SRAM

The M48T37Y/V TIMEKEEPER®RAM is a 32 Kb x 8 non-volatile static RAM and real-time clock. The monolithic chip is available in a special package which provides a highly integrated battery-backed memory and real-time clock solution.

The 44-lead, 330 mil SOIC package provides sockets with gold-plated contacts at both ends for direct connection to a separate SNAPHAT housing containing the battery and crystal. The unique design allows the SNAPHAT®battery/crystal package to be mounted on top of the SOIC package after the completion of the surface mount process.

Insertion of the SNAPHAT housing after reflow prevents potential battery and crystal damage due to the high temperatures required for device surface-mounting. The SNAPHAT housing is keyed to prevent reverse insertion.

The SOIC and battery packages are shipped separately in plastic anti-static tubes or in tape & reel form. For the 44-lead SOIC, the battery/crystal package (e.g., SNAPHAT) part number is “M4T28-BR12SH” or “M4T32-BR12SH”.

技术特性

Integrated ultra low power SRAM, real-time clock, power-fail control circuit, and battery
Frequency test output for real-time clock software calibration
Automatic power-fail chip deselect and WRITE protection
Watchdog timer
WRITE protect voltage (VPFD= Power-fail deselect voltage):
- M48T37Y: VCC= 4.5 to 5.5 V 4.2 V ≤ VPFD≤ 4.5 V
- M48T37V: VCC= 3.0 to 3.6 V 2.7 V ≤ VPFD≤ 3.0 V
Packaging includes a 44-lead SOIC and SNAPHAT®top (to be ordered separately)
SOIC package provides direct connection for a SNAPHAT®top which contains the battery and crystal
Microprocessor power-on reset (valid even during battery backup mode)
Programmable alarm output active in the battery backup mode
Battery low flag
RoHS compliant
- Lead-free second level interconnect

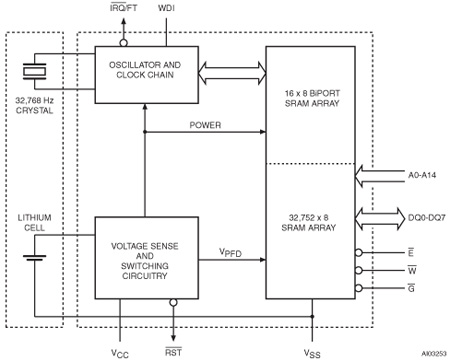

功能框图

M48T37V 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
M48T37V-10MH1F	Active			SO-44	Tape And Reel	0 °C-70°C	M48T37V-10MH1F

DATASHEET

描述	版本	大小
M48T37V : 5.0 or 3.3 V, 256 Kbit (32 Kbit x 8) TIMEKEEPER® SRAM	9	516KB

APPLICATION NOTES

描述	版本	大小
AN968: VMEbus TIMEKEEPER® requirements	1	38KB
AN925: Time update in ST's TIMEKEEPER® devices	1	31KB
AN923: TIMEKEEPER® rolling into the year 2000 (21st century, Y2K)	1	20KB
AN1012: Predicting the battery life and data retention period of NVRAMs and serial RTCs	4	440KB
AN934: How to use the digital calibration feature in TIMEKEEPER® and serial real-time clock (RTC) products	4	124KB
AN1011: Battery technology used in NVRAM and real-time clock (RTC) products from ST	4	249KB
AN1009: 'Negative undershoot' NVRAM data corruption	1	34KB
