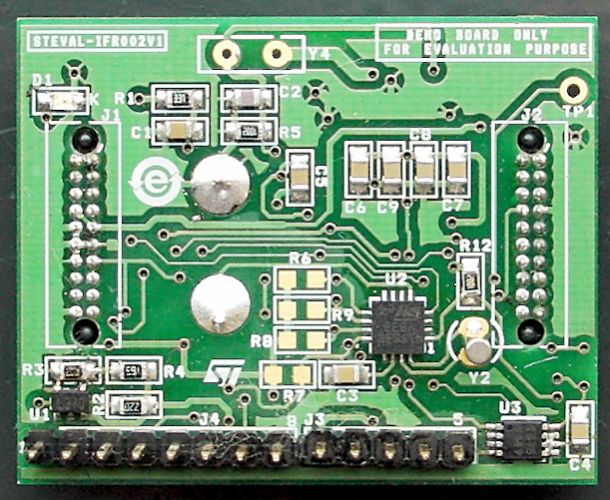

STEVAL-IFR002V1 RTC calibration daughterboard based on the M41T83SQA6F to be used with STEVAL-IFS012V1

The STEVAL-IFR002V1 is an RTC calibration demonstration daughter card to be used in connection with STEVAL-IFS012V1, a multi-device temperature sensor demonstration motherboard. STEVAL-IFS012V1 supports the demonstration of four RTCs; M41T81S RTC mounted on motherboard, M41T82 (SO-8 package) mounted on separate STEVAL-IFR001V1 daughter card, M41T83(QFN package) mounted on separate STEVAL-IFR002V1 daughter card, and M41T83 (SOX18 package) mounted on separate STEVAL-IFR003V1 daughter card.

RTC mode of the GUI is chosen through the RTC selection icon on the GUI.

技术特性
  • M41T83SQA6F RTC in QFN16 package mounted on daughter card.
  • RoHS compliant
功能框图
STEVAL-IFR002V1 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
STEVAL-IFR002V1 Active   1000
DATA BRIEF
描述 版本 大小
STEVAL-IFR002V1 : RTC calibration daughterboard based on the M41T83SQA6F to be used with STEVAL-IFS012V1 1 317KB
APPLICATION NOTES
描述 版本 大小
AN3200: 2.5 kW MMA welding machine 1 979KB
BILL OF MATERIALS
描述 版本 大小
Bill of materials 1.0 10KB
SCHEMATIC PACKS
描述 版本 大小
Board schematic 1.0 135KB
PCB LAYOUTS
描述 版本 大小
PCB layout 1.0 459KB
