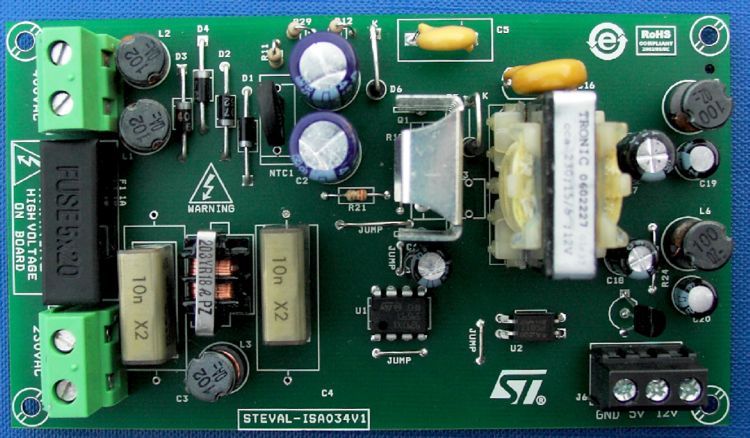

STEVAL-ISA034V1 10 W 3-phase auxiliary power supply based on the L6565 and STW3N150
This evaluation board offers a solution for industrial power supplies fed by 3-phase mains. It takes advantage of the high voltage MOSFET STW3N150 to optimize the operation of the quasiresonant flyback converter based on the primary controller L6565. The STW3N150 is a 1500 V power MOSFET, designed with STMicroelectronics’ proprietary high voltage "MESH OVERLAY™" technology. Thanks to this technology, the switch features very low RDS(on) per area, low gate charge and high switching performance. The evaluation board has been designed and developed to address low power applications. It features two isolated outputs (12 V and 5 V) and is capable of delivering up to 10 W of output power
技术特性
- Input voltage range : 185 Vac to 460 Vac
- Input frequency range: 50/60 Hz
- Output 1: 12 V @0.6 A
- Output 2: 5 V @ 0.55 A
- Output power : 10 W
- Safety: EN60950
- EMI: EN55014
| 功能框图
 |
STEVAL-ISA034V1 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STEVAL-ISA034V1 |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| STEVAL-ISA034V1 : 10 W 3-phase auxiliary power supply based on the L6565 and STW3N150 |
1 |
153KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN2495: 3-phase 80 W SMPS with very wide-range input voltage based on the L6565 and ESBT® STC04IE170HV |
5 |
808KB |
| AN2936: 10 W SMPS with HV power MOSFET and the L6565 for three-phase industrial applications |
1 |
303B |
BILL OF MATERIALS
SCHEMATIC PACKS
PCB LAYOUTS
