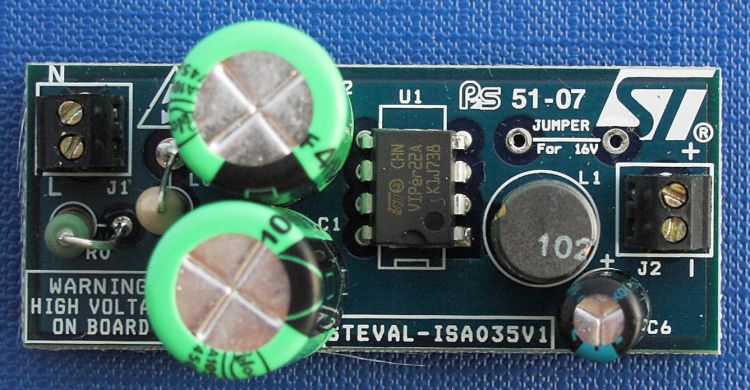

STEVAL-ISA035V1 Non-isolated offline power supply demonstration board based on the VIPER22A-E
Many appliances today use non-isolated power supplies to furnish the low output power required to run a microcontroller, LED displays, and relays or AC switches. This type of power supply has a single rectifier to reference the neutral to output ground in order to fire Triacs or AC switches.
This demonstration board can use the VIPER12A-E or the VIPER22A-E, which are pinfor- pin compatible and can supply power for a wide variety of applications.
The VIPER12A-E is used for 12 V at 200 mA and 16 V at 200 mA, while the VIPER22A-E is used for 12 V at 350 mA and 16 V at 350 mA.
The same board can be used for any output voltage from 10 V to 35 V.
For more design details, please refer to application note AN1357.
技术特性
- Input voltage range 85 Vac to 264 Vac
- Input voltage frequency 50/60 Hz
- Lowest possible component count
- Integrated thermal overload protection
- No-load consumption around 200 mW
- 70% to 80% efficiency at full load
- Integrated short-circuit protection
| 功能框图
 |
STEVAL-ISA035V1 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STEVAL-ISA035V1 |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| STEVAL-ISA035V1 : Non-isolated offline power supply demonstration board based on the VIPER22A-E |
2 |
90KB |
