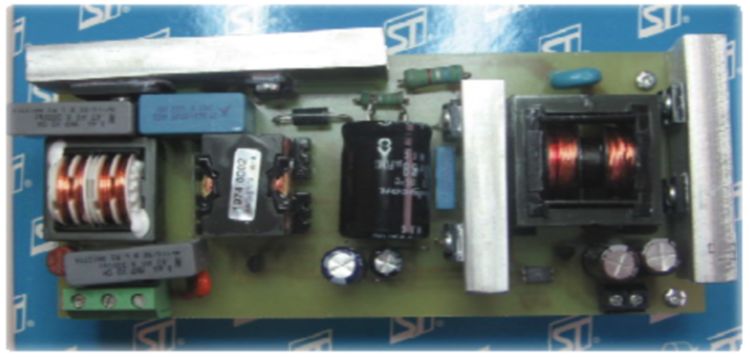

STEVAL-ISA080V1 90 W HB LLC resonant converter demonstration board based on the L6585DE combo IC
The STEVAL-ISA080V1 demonstration board is a 90 W, wide range mains, power factor corrected AC-DC power supply.
The architecture is based on a two-stage approach: a front-end PFC pre-regulator and a downstream multi-resonant half bridge converter.
Both stages are controlled by the new L6585DE that integrates PFC and half-bridge control circuits and the relevant drivers.
Although this new device is dedicated to manage electronic ballast, it’s possible to use it also for HB LLC resonant converter.
The PFC section achieves current mode control operating in transition mode, offering a highly linear multiplier including a THD optimizer that allows for an extremely low THD, even over a large range of input voltages and loading conditions
技术特性
- Input voltage range : 90 to 265 VRMS
- Line frequency : 50/60 Hz
- Output voltage : 19 V
- Output current : 4.7 A
- RoHS compliant
| 功能框图
 |
STEVAL-ISA080V1 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STEVAL-ISA080V1 |
Preview |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| STEVAL-ISA080V1 : DB1101: 90 W HB LLC resonant converter demonstration board based on the L6585DE combo IC |
1 |
83KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN3257: STEVAL-ISA080V1 90 W-HB LLC resonant converter based on the L6585DE combo IC |
1 |
686KB |
| AN2936: 10 W SMPS with HV power MOSFET and the L6565 for three-phase industrial applications |
1 |
303B |
BILL OF MATERIALS
SCHEMATIC PACKS
PCB LAYOUTS
