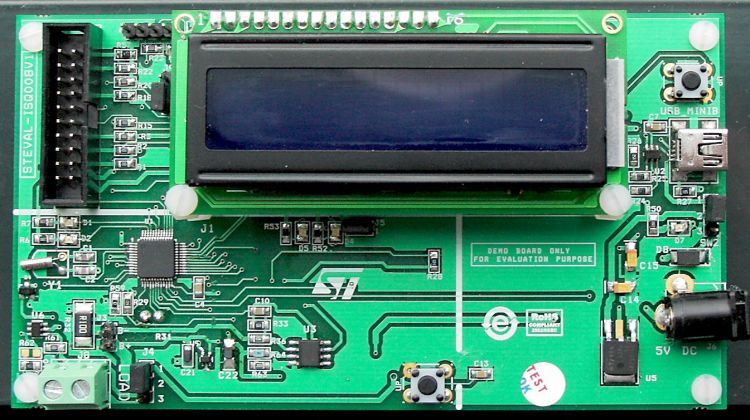

STEVAL-ISQ008V1 Fuel gauge implementation based on the STM32F103x
Fuel gauge technology is a smart system which monitors battery capacity, predicting the remaining capacity and displaying its status. The basic unit of measurement used for battery capacity is Coulomb counting, in which the current flowing through the battery is continuously monitored and integrated to calculate the capacity.
Current measurement is done when the battery is both discharging and charging. Therefore, both the IN and OUT current are used to calculate the remaining capacity of the battery.
Battery capacity is measured in mAh.
技术特性
- Single-cell Li-Ion battery fuel gauge technology
- Dual selectable power input source:
- USB connection or external DC power source 5 V
- Battery fuel capacity monitoring by on-chip 12-bit ADC
- Based on the Micro STM32 (ARM Cortex™-M3 core) family
- RoHS compliant
| 功能框图
 |
STEVAL-ISQ008V1 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STEVAL-ISQ008V1 |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| STEVAL-ISQ008V1 : Fuel gauge implementation based on the STM32F103x |
1 |
480KB |
USER MANUALS
| 描述 |
版本 |
大小 |
| UM0612: STEVAL-ISQ008V1, fuel gauge implementation based on the STM32F103x |
1 |
893KB |
BILL OF MATERIALS
SCHEMATIC PACKS
PCB LAYOUTS
