STM32W-RFCKIT STM32W Low-cost RF control kit
The STM32W RF Control Kit is a low-cost and quick way to get started using STM32W-based point-to-point wireless control applications.

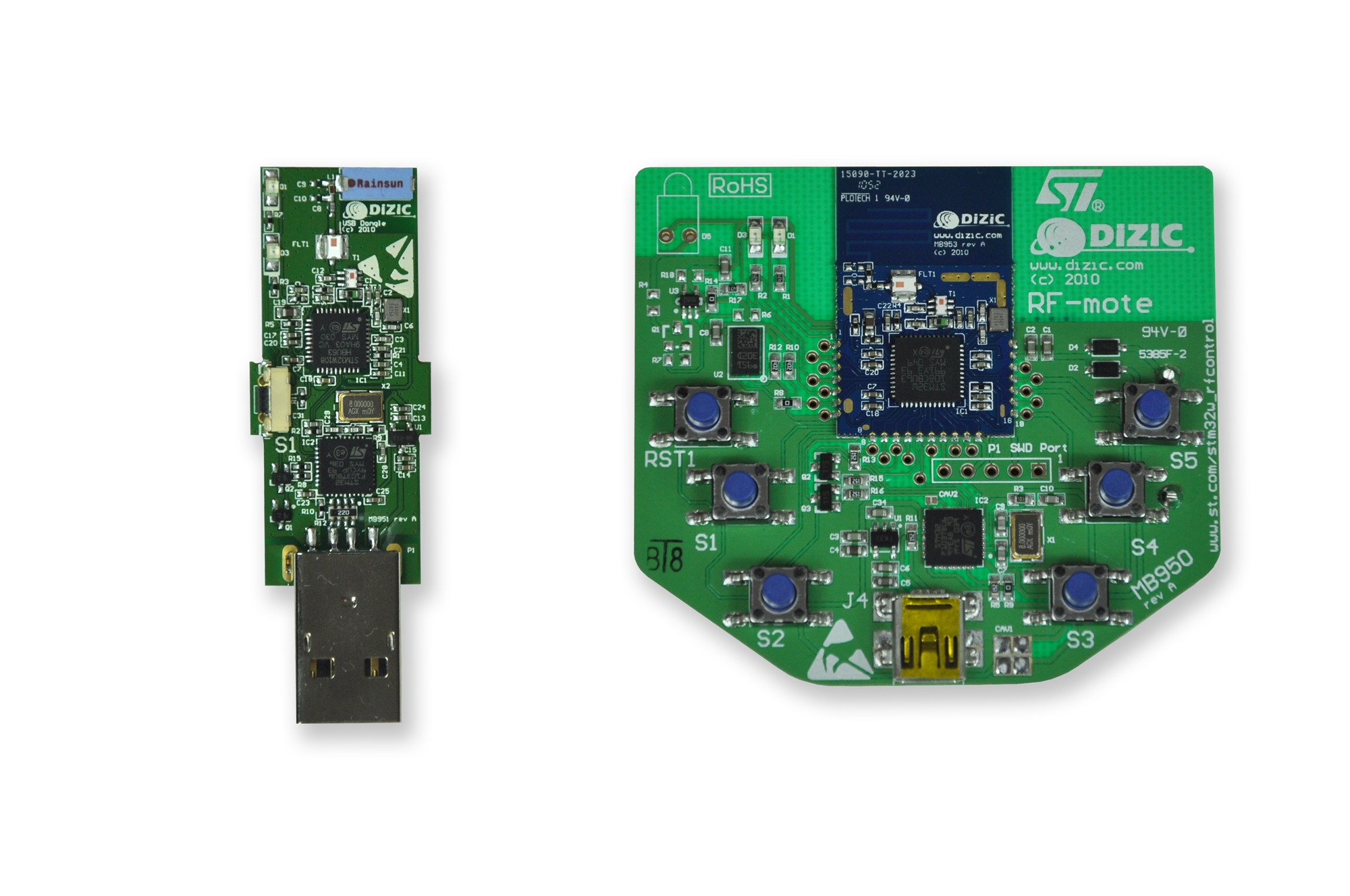

It includes everything required by beginners and experienced users to start developing RF control systems. The STM32W RF Control Kit includes one remote board and one receiver board (USB dongle), both using the STM32W microcontroller packaged in a VFQFPN48 for the remote board and VFQFPN40 for the USB dongle.
Both boards are also fitted with an STM32F103 microcontroller providing an easy-to-connect solution between a USB link to the PC world.
Debug capabilities are provided by a mini-JTAG connector interface on the remote board (not fitted). Free, ready-to-run application firmware are provided at www.st.com/stm32w_rfcontrol.
技术特性
- STM32W System-on-Chip 32-bit ARM® Cortex™-M3 processor
- 2.4 GHz IEEE 802.15.4 transceiver and Lower MAC
- 128-Kbyte Flash and 8-Kbyte RAM memory
- Flash memory upgrade capability via USB
- ARM Serial Wire Debug (SWD) interface (Remote board)
- Designed to be powered by USB or with 2 AAA batteries (Remote board)
- Two user-defined LEDs (green and yellow)
- Five push buttons to create easy-to-use remote functions (Remote board)
- Interoperable with other STM32W tool boards to enlarge wireless network capabilities
- 802.15.4, ZigBee RF4CE, ZigBee Pro, 6LoWPAN (Contiki) wireless protocols
| 功能框图
 |
STM32W-RFCKIT 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STM32W-RFCKIT |
Active |
|
1000 |
|
|
|
STM32W-RFCKIT |
DATA BRIEF
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN3262: Using the over-the-air bootloader with STM32W108 devices |
2 |
1319KB |
| AN3206: PCB design guidelines for the STM32W108 platform |
3 |
282KB |
| AN3218: Adjacent channel rejection measurements for the STM32W108 platform |
2 |
96KB |
USER MANUALS
| 描述 |
版本 |
大小 |
| UM0978: Using the Simple MAC nodetest application |
3 |
192KB |
| UM0894: STM32W-RFCKIT and STM32W-RFCKIT starter and extension kits for STM32W108xx microcontrollers |
5 |
826KB |
| UM0893: STM32W108xx Simple MAC library |
9 |
576KB |
FIRMWARE
| 描述 |
版本 |
大小 |
| STM32W-RFCKIT firmware package (AN3268) |
1.0.0 |
1630KB |
