STN1NK60Z N-channel 600 V, 13 Ohm typ., 0.3 A Zener-protected SuperMESH(TM) Power MOSFET in SOT-223 package
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products
技术特性
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
应用领域
|

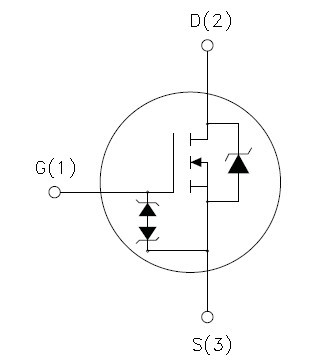

内部原理图
 |
STN1NK60Z 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STN1NK60Z |
Active |
|
1000 |
SOT-223 |
Tape And Reel |
|
STN1NK60Z |
DATASHEET
| 描述 |
版本 |
大小 |
| STN1NK60Z :N-channel 600 V, 13 Ω, 0.8 A TO-92, SOT-223 Zener-protected SuperMESH™ Power MOSFET |
12 |
710KB |
