STP2NK60Z N-channel 600 V, 7.2 Ohm typ., 1.4 A Zener-protected SuperMESH(TM) Power MOSFET in a TO-220 package
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOS-FETs including revolutionary MDmesh™ products.
技术特性
- TYPICAL RDS(on) = 7.2 Ω
- EXTREMELY HIGH dv/dt CAPABILITY
- ESD IMPROVED CAPABILITY
- 100% AVALANCHE TESTED
- NEW HIGH VOLTAGE BENCHMARK
- GATE CHARGE MINIMIZED
应用领域
|

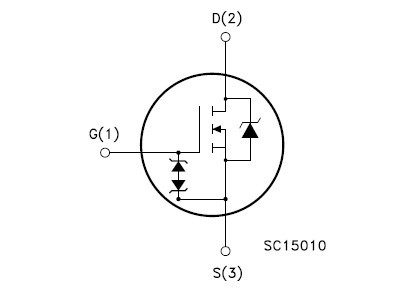

内部原理图
 |
STP2NK60Z 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STP2NK60Z |
NRND |
|
1000 |
TO-220AB |
Tube |
|
STP2NK60Z |
DATASHEET
| 描述 |
版本 |
大小 |
| STP2NK60Z :DS3645: N-channel 600V - 7.2Ω - 1.4 A TO-220/TO-220FP/TO-92/IPAK Zener-protected SuperMESH™ MOSFET |
5 |
502KB |
