STULPI01B High speed USB On-The-Go ULPI transceiver
The STULPI01 is a high-speed USB 2.0 transceiver compliant with ULPI (UTMI+ low-pin interface) and OTG (on-the-go) specifications, providing a complete physical layer solution for any high-speed USB host, device or OTG dual-role core. It allows USB ASICs to interface with the physical layer of the USB through a 12-pin interface. It contains VBUS comparators, an ID line detector, USB differential drivers and receivers and a complete ULPI register map and interrupt generator. The STULPI01 transceiver is suitable for mobile applications and battery-powered devices because of its low power consumption, power-down operating mode and minimal die/package dimensions.
技术特性
- USB-IF high speed certified to the Universal Serial Bus specification rev 2.0
- Meets the requirements of the Universal Serial Bus specification revision 2.0, on-the-go supplement to the USB 2.0 specification 1.0a and ULPI transceiver specification 1.1
- Standard ULPI (UTMI+ low-pin interface) 1.1 digital interface
- Fully compliant with ULPI 1.1 register set
- External square wave clock with VDVIOamplitude must be applied to oscillator input XI
- Supports 480 Mbit/s high-speed, 12 Mbit/s full-speed and 1.5 Mbit/s low-speed modes of operation
- Supports 2.7 V UART mode.
- Supports session request protocol (SRP) and host negotiation protocol (HNP) for dual-role device features
- Ability to control external charge pump for higher VBUS currents.
- Single supply, +3 V to +4.5 V voltage range
- Integrated dual voltage regulator to supply internal circuits with stable 3.3 V and 1.2 V
- Integrated overcurrent detector
- Integrated HS termination and FS/LS/OTG pull-up/pull-down resistors
- Integrated USB 2.0 “short-circuit withstand” protection
- Power-down mode with very low power consumption for battery-powered devices
- Ideal for system ASICs with built-in USB host, device or OTG cores
- Available in μTFBGA36 RoHS package
- –40 °C to 85 °C operating temperature range

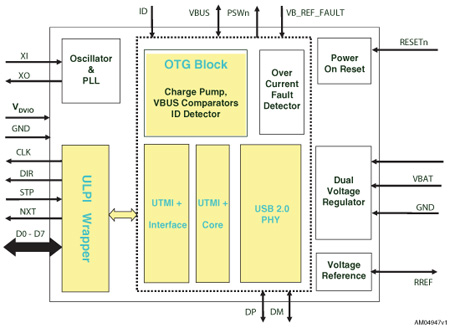

Circuit Diagram
STULPI01B 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STULPI01BTBR |
Active |
3.915 |
1000 |
TFBGA 36 3.6x3.6 |
Tape And Reel |
-40 °C-85 °C |
STULPI01BTBR |
DATASHEET
| 下载 |
描述 |
版本 |
大小 |
| STULPI01B |
High-speed USB on-the-go ULPI transceiver |
3 |
844KB |
DATA BRIEF
| 下载 |
描述 |
版本 |
大小 |
| STULPI01B |
HS USB ULPI transceiver |
1 |
96KB |
