STV7733 320 output dot-matrix display driver

The STV7733 device is a low-power, controller/driver IC for dot-matrix displays. Data is encoded on two bits to select one of four possible output states: high level, medium level, ground or high impedance (Hi-Z).

Inputs AOC1 and AOC2 control the all output stages simultaneously to select one of five possible configurations: high level, medium level, ground, Hi-Z or data through.

Except for the data through mode, the configuration selected by AOC1 and AOC2 is applied to all outputs at the same time.

The STV7733 communicates with the host controller through an 8-bit parallel interface. The input data bus is organized as four, 2 x 80-bit shift registers operating in parallel at a maximum clock frequency of 10MHz.

Logic inputs are LVCMOS compatible.

The STV7733 is available in bumped die form. Bumped die can be assembled in either a TCP or COG module

技术特性

High-voltage, row/column driver IC
320, tri-level (high-voltage, medium voltage and ground) power outputs:
- capable of operating at 90V, absolute max.
- capable of sinking or sourcing 2mA
- Hi-Z
Logic supply range: 2.5V to 3.3V
Slim shape die for COG, COF and TCP solutions
Interface:
- four dual (2-bit) input serial buses: DBA[1:2], DBB[1:2], DBC[1:2] and DBD[1:2] operating at shift clock frequency of 10MHz, max.
- three control inputs: shift clock direction (DIR), chip select (/CS) and data latch (/DL)
- two “all output” stage control inputs: AOC1 and AOC2
Power supplies:
- high-voltage for power outputs: 90V, max.
- logic supply suitable for battery powered applications: 2.5V, min

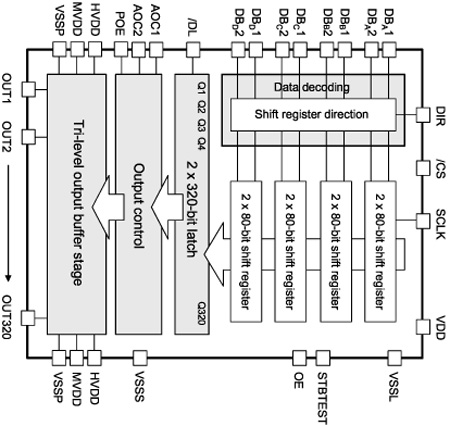

功能框图

STV7733 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
STV7733/BMP	Active			TESTED USWF BP		-20 °C-70 °C	STV7733/BMP
STV7733/WPB3-A	NRND			GOLD BUMPED DICE		-20 °C-70 °C	STV7733/WPB3-A

DATASHEET

描述	版本	大小
STV7733 :DS5289: 320 output dot-matrix display driver	1	321KB
