T810H High-temperature 8A sensitive Triacs
Specifically designed to operate at 150 °C, the new 8 A T810H TRIACs provide an enhanced performance in terms of power loss and thermal dissipation. This allows the optimization of the heatsink size, leading to space and cost effectiveness when compared to electromechanical solutions.
Based on ST logic level technology, they offer an IGT lower than 10 mA and specified minimal commutation and high noise immunity levels valid up to the Tj max.
技术特性
- Medium current TRIAC
- Logic level sensitive TRIAC
- 150 °C max. Tj turn-off commutation
- Clip bounding
- RoHS (2002/95/EC) compliant packages
应用领域
- The T810H is designed for the control of AC
actuators in appliances and industrial systems.
- The multi-port drive of the microcontroller can
control the multiple loads of such appliances
and systems through these sensitive gate
TRIACs.
|

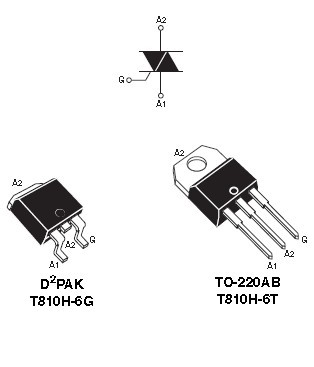

管脚定义图
 |
T810H 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| T810H-6G-TR |
Active |
0.62 |
1000 |
D²PAK |
Tape And Reel |
|
T810H-6G-TR |
| T810H-6G |
Active |
0.62 |
1000 |
D²PAK |
Tube |
|
T810H-6G |
| T810H-6T |
Active |
0.694 |
1000 |
TO-220AB |
Tube |
|
T810H-6T |
DATASHEET
| 描述 |
版本 |
大小 |
| T810H :DS6277: High temperature 8 A sensitive TRIACs |
1 |
118KB |
