TD352 Advanced IGBT/MOSFET driver
This device is an advanced gate driver for IGBTs and power MOSFETs. Control and protection functions are included and allow the design of high reliability systems.
The innovative active Miller clamp function eliminates the need for negative gate drive in most applications and allows the use of a simple bootstrap supply for the high side driver.
The TD352 includes an adjustable turn-on delay. This feature can be used to implement reliable deadtime between high and low sides of a half bridge. An external resistor and capacitor are used to provide accurate timing
技术特性
- 1.7 A sink / 1.3 A source (typ) current capability
- Active Miller clamp feature
- Desaturation detection
- Adjustable turn-on delay
- UVLO protection
- 2k V ESD protection

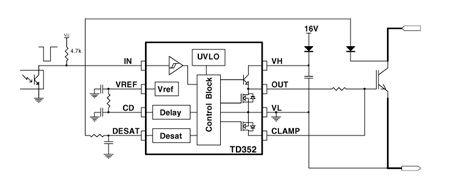

Circuit Diagram
TD352 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| TD352ID |
Active |
1.069 |
1000 |
SO-8 |
Tube |
|
TD352ID |
| TD352IDT |
Active |
1.069 |
1000 |
SO-8 |
Tape And Reel |
|
TD352IDT |
| TD352IN |
NRND |
1.069 |
1000 |
DIP-8 |
Tube |
|
TD352IN |
DATASHEET
| 下载 |
描述 |
版本 |
大小 |
| TD352 |
DS4182: Advanced IGBT/MOSFET driver |
2 |
236KB |
APPLICATION NOTES
| 下载 |
描述 |
版本 |
大小 |
| AN2123 |
AN3165: Digital PFC and dual FOC MC integration |
1 |
1148KB |
BOARDS AND TOOLS
| 下载 |
描述 |
| STEVAL-ISF002V1 |
1.4 kW digital PFC demonstration board based on the STW23NM60N and TD352 |
