TEA6420 Audio switch matrix for TV - Bus controlled
The TEA6420 switches 5 stereo audio inputs on 4stereo outputs.
All the switching possibilities are changed through the I²C bus
技术特性
- 5 Stereo Inputs
- 4 Stereo Ouputs
- Gain Control 0/2/4/6dB/Mute for each Output
- cascadable (2 different addresses)
- Serial Bus Controlled
- Very low Noise
- Very low Distorsion
|

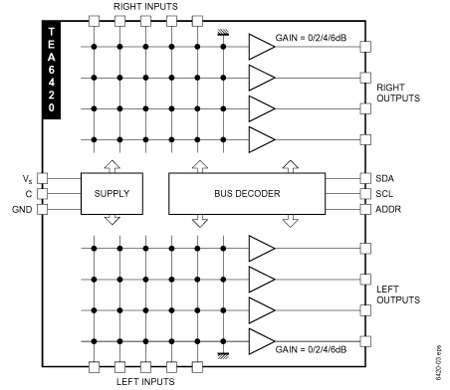

功能框图
 |
TEA6420 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| TEA6420D |
NRND |
|
1000 |
SO-28 |
Tube |
|
|
| TEA6420DT |
NRND |
|
1000 |
SO-28 |
Tape And Reel |
|
|
DATASHEET
| 描述 |
版本 |
大小 |
| TEA6420 :DS3459: Bus-controlled audio matrix switch |
2 |
147KB |
