TEA6422 Audio switch matrix for TV - Bus controlled
The TEA6422 switches 6 stereo audio inputs on 3 stereo outputs.
All the switching possibilities are changed through the I²C BUS
技术特性
- 6 Stereo Inputs
- 3 Stereo Ouputs
- Gain Control 0 dB/Mute for each Output
- Cascadable (2 different addresses)
- Serial Bus Controlled
- Very Low Noise
- Very Low Distorsion
- Fully ESD Protected
- Wide Audio Dynamic Range ( 3 VRMS)
|

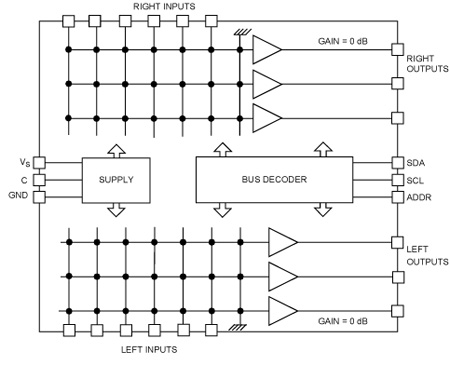

功能框图
 |
TEA6422 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| TEA6422D |
NRND |
|
1000 |
SO-28 |
Tube |
|
|
| TEA6422DT |
NRND |
|
1000 |
SO-28 |
Tape And Reel |
|
|
DATASHEET
| 描述 |
版本 |
大小 |
| TEA6422 :DS3480: Bus-controlled audio matrix |
1 |
170KB |
