854651 滤波器 - STD 低损耗

The TriQuint 854651 is a high rejection Intermediate Frequency (IF) filter for use in narrowband wireless communications systems. The center frequency of this filter is 70 MHz and the bandwidth is 0.5 MHz. The insertion loss is 8 dB maximum and the filter is packaged in a hermetic surface-mounted package.

技术指标
频率(MHz) 带宽 (MHz) 插入损耗 (dB) 操作模式 封装(mm)
70 0.5 8.0 max SE 19.0 x 6.5
订购信息 Ordering Information
  • 854651
应用领域 APPLICATION
  • Transceivers

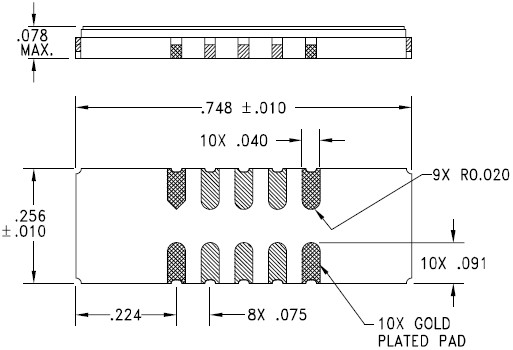

封装外形Package Outline
854651 封装外形
应用技术支持与电子电路设计开发资源下载 版本信息 大小
854651:S 参数Matched
854651:S 参数Unmatched
854651:封装信息
854651 数据资料DataSheet下载:PDF Rev.V2 2 页
