854652 滤波器 - STD 低损耗
The TriQuint 854652 is a high-performance IF SAW filter with a center frequency of 70 MHz and a 3 dB bandwidth of 1.1 MHz. It features low loss with excellent attenuation, and is designed to be used with a single ended input and output. The device is RoHS compliant and lead-free.
技术特性
- Typical 3 dB bandwidth of 1.1 MHz
- Low loss
- High attenuation
- Single-ended operation
- Ceramic Surface Mount Package (SMP)
- Small size
- Dimensions: 19.00 x 6.50 x 1.75 mm
- Hermetically sealed
- RoHS compliant, lead-free

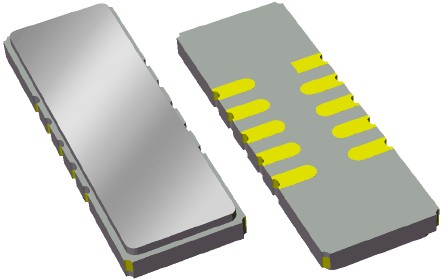

854652 产品实物图
|
应用领域 APPLICATION
- General Purpose
- For IF applications
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 70 |
1 |
8.0 max |
SE |
19.0 x 6.5 |
订购信息 Ordering Information
| 854652 |
packaged part |
| 854652-EVB |
evaluation board |

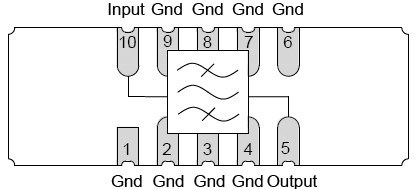

功能框图 Functional Block Diagram
|
