854669 滤波器 - STD 低损耗

The TriQuint 854669 is a high-performance IF SAW filter with a center frequency of 70 MHz and a 3.0 dB bandwidth of 18.5 MHz. It features low loss with excellent attenuation, and is designed to be used with a single ended input and output. The device is RoHS compliant and lead-free.

技术特性
  • Typical 3 dB bandwidth of 18.5 MHz
  • Low loss
  • High attenuation
  • Single-ended operation
  • Ceramic Surface Mount Package (SMP)
  • Small size
  • Dimensions: 13.30 x 6.50 x 1.75 mm
  • Hermetic, RoHS compliant, lead-free

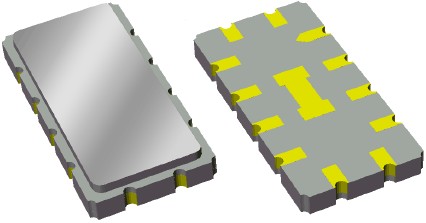

854669 产品实物图

854669 产品实物图

应用领域 APPLICATION
  • General Purpose
  • For IF applications
技术指标
频率(MHz) 带宽 (MHz) 插入损耗 (dB) 操作模式 封装(mm)
70 18 14.5 max SE 13.3 x 6.5
订购信息 Ordering Information
854669 packaged part
854669-EVB  evaluation board

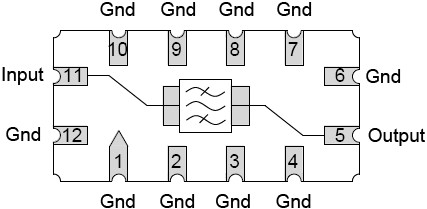

功能框图 Functional Block Diagram

854669 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
854669:S 参数Matched
854669:S 参数Unmatched
854669:封装信息
854669 数据资料DataSheet下载:PDF Rev.V2 2 页
