855728 用于CDMA/Amps(接收)的高抑制滤波器

The TriQuint 855728 is a low loss RF filter with a center frequency of 881.5 MHz and a bandwidth of 25 MHz. The insertion loss is 3.5 dB maximum and the filter is provided in a small surface mount hermetic package.

技术特性
  • Usable bandwidth of 25 MHz
  • High attenuation
  • No impedance matching required for operation at 50 Ohm
  • Single-ended operation
  • Ceramic Surface Mount Package (SMP)
  • Hermetic
  • RoHS compliant (2002/95/EC), lead-free
订购信息 Ordering Information
855728 产品实物图

855728 产品实物图

应用领域 APPLICATION
  • Transceivers
  • Coverage Enhancement Repeaters
  • Tower Mounted Amplifiers
技术指标
频率(MHz) 带宽 (MHz) 插入损耗 (dB) 操作模式 封装(mm)
881.5 25.0 3.5 max SE 3.0 x 3.0

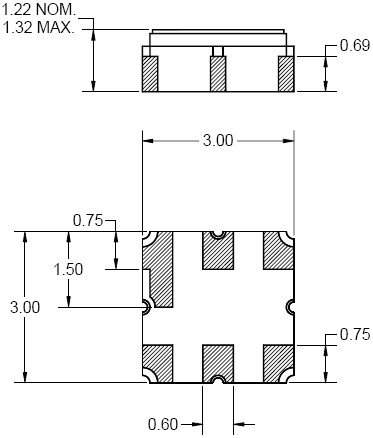

封装外形Package Outline
855728 封装外形
应用技术支持与电子电路设计开发资源下载 版本信息 大小
855728:S 参数Narrow Unmatched
855728:S 参数Unmatched
855728:S 参数Wide Unmatched
855728封装信息:pdf
855728 数据资料DataSheet下载:PDF Rev.V2 2 页
