855782 RF滤波器 ，蜂窝频带
The TriQuint 855782 is a low loss RF filter with a center frequency of 881.5 MHz and a bandwidth of 25 MHz. The insertion loss is 1.8 dB and the filter is provided in a small surface mount hermetic package.
技术特性
- Usable bandwidth of 25 MHz
- Low loss
- No impedance matching required for operation at 50 Ohm
- Single-ended operation
- Ceramic Surface Mount Package (SMP)
- Hermetic
- RoHS compliant (2002/95/EC), lead-free
订购信息 Ordering Information

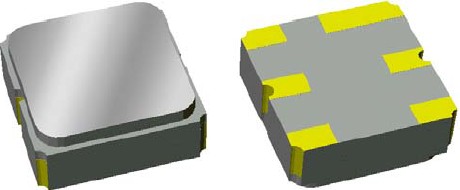

855782 产品实物图
|
应用领域 APPLICATION
- Transceivers
- Coverage Enhancement Repeaters
- Tower Mounted Amplifiers
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 881.5 |
25 |
1.8 |
SE/SE |
3.0 x 3.0 |

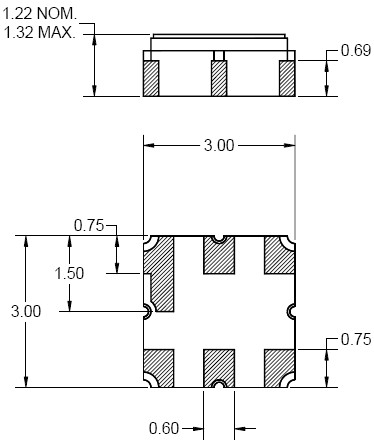

封装外形Package Outline
 |
