856140 310.7 MHz SAW 滤波器
The TriQuint 856140 is a high-performance IF SAW filter with a center frequency of 310.7 MHz and a usable bandwidth of 3 MHz. It features low loss with excellent attenuation, and is designed to be used with a single ended input and output. The device is RoHS compliant and lead-free.
技术特性
- Usable bandwidth of 3 MHz
- Low loss
- High attenuation
- Single-ended operation
- Ceramic Surface Mount Package (SMP)
- Dimensions: 5.0 x 5.0 x 1.3 mm
- Hermetic RoHS compliant, lead-free
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 310.7 |
3 |
3.0 |
SE / SE |
5.0 x 5.0 |

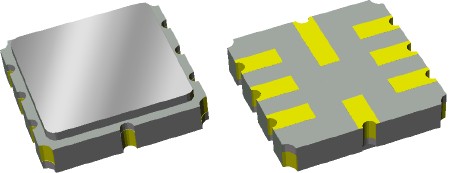

856140 产品实物图
|
应用领域 APPLICATION
订购信息 Ordering Information
| 856140 |
packaged part |
| 856140-EVB |
evaluation board |

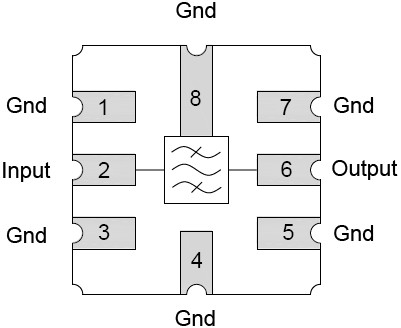

功能框图 Functional Block Diagram
|
