856528 EGSM RF滤波器

The TriQuint 856528 is a low loss RF filter with a center frequency of 942.5 MHz and a bandwidth of 35 MHz. The insertion loss is 2.5 dB and the filter is provided in a small surface mount hermetic package.

技术特性
  • Usable bandwidth of 35 MHz
  • High attenuation
  • No impedance matching required for operation at 50 Ohm
  • Single-ended operation
  • Ceramic Surface Mount Package (SMP)
  • Hermetic
  • RoHS compliant (2002/95/EC), lead-free
技术指标
频率(MHz) 带宽 (MHz) 插入损耗 (dB) 操作模式 封装(mm)
942.5 35 2.5 SE/SE 3.0 x 3.0

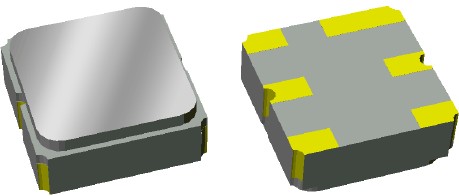

856528 产品实物图

856528 产品实物图

应用领域 APPLICATION
  • Transceivers
  • Coverage Enhancement Repeaters
  • Tower Mounted Amplifiers
订购信息 Ordering Information
  • 856528

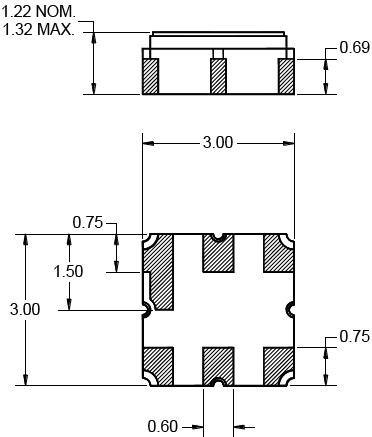

封装外形Package Outline
856528 封装外形
应用技术支持与电子电路设计开发资源下载 版本信息 大小
856528:S 参数Narrow Unmatched
856528:S 参数Wide Unmatched
856528 数据资料DataSheet下载:PDF Rev.V2 2 页
