856582 3G BTS 滤波器
The TriQuint 856582 is a high rejection Intermediate Frequency (IF) filter for use in wideband wireless communications systems. The center frequency of this filter is 172.8 MHz and the bandwidth is 18 MHz. The insertion loss is 8.7 dB typical and the filter is packaged in a hermetic surface-mounted package.
技术特性
- Usable bandwidth of 18 MHz
- Low loss
- High attenuation
- Single-ended operation
- Ceramic Surface Mount Package (SMP)
- Hermetic
- RoHS compliant (2002/95/EC), lead-free
订购信息 Ordering Information

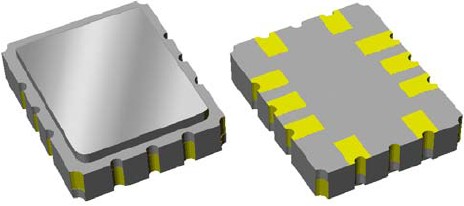

856582 产品实物图
|
应用领域 APPLICATION
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 172.8 |
18 |
8.7 typ |
SE |
7.0 x 5.5 |
封装外形Package Outline
 |
