856691 Std 低损耗滤波器
856691 is a 1.5MHz bandwidth filter which is part of TriQuint’s 140MHz center frequency family for use in IF filtering for various channelized communication systems. Housed in a hermetic surface mount package, 856691 offers low insertion loss, constant group delay, and good input power handling capability. 856691 offers an excellent choice for narrowband selection for communication systems.
技术特性
- Usable bandwidth of 1.5 MHz
- High attenuation
- Balanced or single-ended operation
- Ceramic Surface Mount Package (SMP)
- Hermetic
- RoHS compliant (2002/95/EC), lead-free
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 140 |
1.5 |
14.0 max |
SE, BAL |
9.1 x 4.8 |
订购信息 Ordering Information
| 856691 |
packaged part |
| 856691-EVB |
evaluation board |

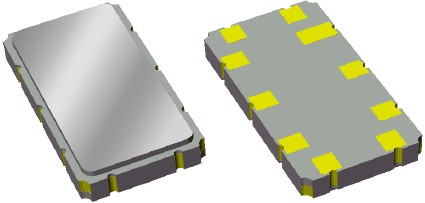

856691 产品实物图
|
应用领域 APPLICATION
- Wireless infrastructure
- Microwave communications IF filtering
- General purpose IF

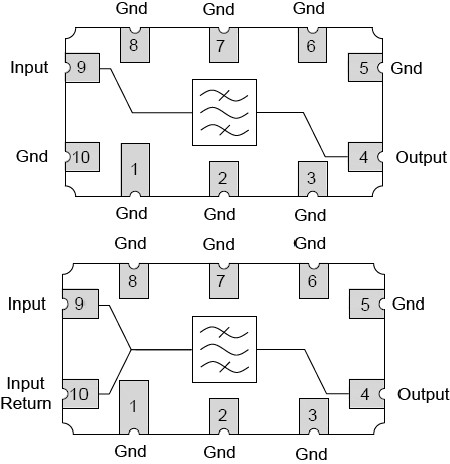

功能框图 Functional Block Diagram
|
