856908 滤波器 - 蜂窝双工器

The TriQuint 856908 is a cellular band duplexer that supports 25 MHz channel bandwidths in both the 881.5 MHz and 836.5 MHz frequency bands. This duplexer is provided in a hermetically sealed surface mount package.

技术特性

Improved rejection for Bluetooth / GPS operation
Usable bandwidth of 25 MHz (each band)
No matching required for operation at 50 Ohm
Hermetic Ceramic Surface Mount Package (SMP)
High uplink - downlink isolation
RoHS compliant (2002/95/EC), lead-free

技术指标

频率(MHz)	带宽 (MHz)	插入损耗 (dB)	操作模式	封装(mm)
836.5/881.5	25	-	Tx/Rx SE	3.8 x 3.8

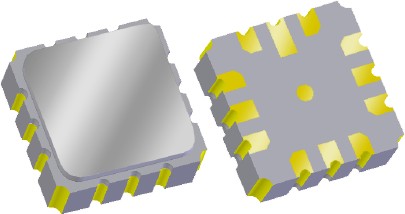

856908 产品实物图

应用领域 APPLICATION

Coverage Enhancement Repeaters
Femtocell Base Stations

订购信息 Ordering Information

856908	packaged part
856908-EVB	evaluation board

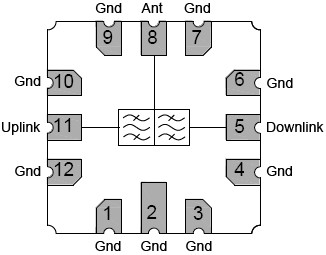

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
856908 数据资料DataSheet下载:pdf	Rev.V2	2 页
