856934 Band 3下行射频滤波器

The 856934 is a general purpose Downlink filter for band 3. This filter was specifically designed in a 3x3mm hermetic package for base station applications and is part of our wide portfolio of RF filters in the same package. Low insertion loss, coupled with high attenuation and excellent power handling, makes this filter a natural choice for our customers’ Downlink RF filtering needs.

技术特性

Usable bandwidth 75 MHz
Low loss
Excellent power handling
Single-ended operation
Ceramic Surface Mount Package (SMP)
No impedance matching required for operation at 50 ohm
Small size: 3.00 x 3.00 x 1.22 mm
Hermetically sealed
RoHS compliant, Pb-free

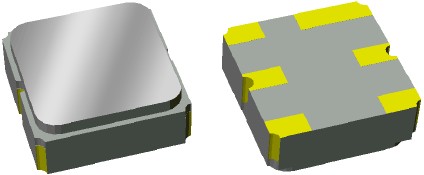

856934 产品实物图

应用领域 APPLICATION

General Purpose Wireless
Wireless Infrastructure
Base Stations
3G / 4G Wireless Infrastructure
Repeaters

技术指标

频率(MHz)	带宽 (MHz)	插入损耗 (dB)	操作模式	封装(mm)
1,842.5	75	4.2	SE	3 x 3

订购信息 Ordering Information

856934

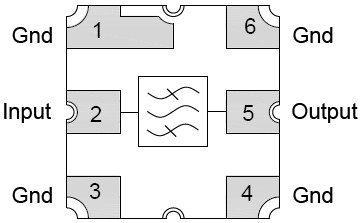

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
856934 数据资料DataSheet下载：PDF	Rev.V2	2 页
