856992 RF SAW 滤波器 - Band 25 Uplink

The TriQuint 856992 is a general purpose Uplink filter for Band 25 with a center frequency of 1882.5 MHz and a bandwidth of 60 MHz. This filter was designed in a 3 x 3 mm hermtic package for base station applications. Low insertion loss, coupled with high attenuation and excellent power handling, makes this filter a natural choice for Uplink RF filtering needs.

技术特性

Usable bandwidth 65 MHz
Low loss
Excellent power handling
Single-ended operation
Matching required for operation at 50 ohm
Small size: 3.00 x 3.00 x 1.22 mm
Ceramic Serface Mount Package (SMP)
Hermetically sealed
RoHS compliant (2002/95/EC), Pb-free

856992 产品实物图

应用领域 APPLICATION

Base Stations
Wireless Infrastructure

技术指标

频率(MHz)	带宽 (MHz)	插入损耗 (dB)	操作模式	封装(mm)
1882.5	65	1.9	SE / SE	3 x 3 mm

订购信息 Ordering Information

856992

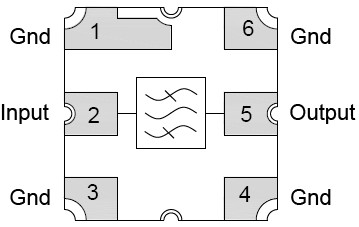

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
856992:S 参数Narrow Unmatched
856992:S 参数Wide Unmatched
856992 数据资料DataSheet下载：PDF	Rev.V2	2 页
