857031 SVLTE应用的826陷波滤波器

The 857031 is a high performance Surface Acoustic Wave (SAW) Notch Filter designed to reject emissions in the BC0 band while passing Band 13 LTE band. 857031 is specifically designed to enable simultaneous voice and LTE for Band 13 application. It is specified to support Band 13 requirements in the entire 746 - 787 MHz band. The 857031 uses advanced packaging techniques to achieve an industry-leading 2.5 x 2.0 x 0.56 mm package. The filter exhibits excellent power handling capabilities.

技术特性

High linear notch filter
Usable reject band 4 MHz
Low loss in 746-756 MHz / 777-787 MHz
High BC0 attenuation
Ceramic chip-scale Package (CSP)
Small size: 2.5 x 2.00 x 0.56 mm
Hermetic RoHS compliant, Pb-free

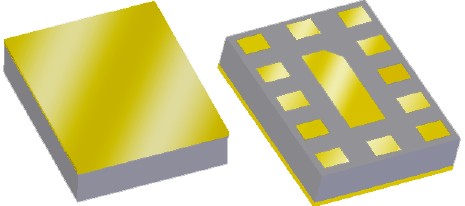

857031 产品实物图

应用领域 APPLICATION

SVLTE 4G
Band 13 LTE

技术指标

频率(MHz)	带宽 (MHz)	插入损耗 (dB)	操作模式	封装(mm)
751 (B13 LTE), 782 (B13 LTE)	10	0.9	B13 LTE Pass, BC0 reject	0.6

订购信息 Ordering Information

857031

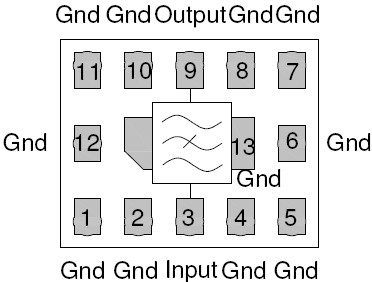

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
857031 数据资料DataSheet下载：PDF	Rev.V2	2 页
