857038 用于手持和自动化移动设备的波段 V 发送滤波器 (836.5 MHz)

The TriQuint 857038 is an 836.5 MHz CDMA filter with low insertion loss and excellent rejection. It is ideal for automotive telematics applications. It achieves its performance over an extended temperature range and has been qualified to AEC-Q200 requirements. In addition, it is fabricated and packaged in TS-16949-certified facilities. The 857038 uses advanced and inexpensive packaging techniques to achieve an extremely compact hermetically sealed 1.2 x 1.4 x 0.46 mm package.

技术特性

Usable bandwidth of 25 MHz
Single-ended operation
Ceramic chip-scale Package (CSP)
Qualified for automotive applications
Small Size: 1.40 x 1.20 x 0.46 mm
Hermetically sealed
RoHS compliant, lead-free

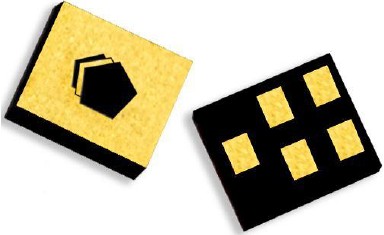

857038 产品实物图

应用领域 APPLICATION

Automotive Telematics
CDMA

技术指标

频率(MHz)	带宽 (MHz)	插入损耗 (dB)	操作模式	封装(mm)
836.5	25	2.3	SE / SE	1.2 x 1.4

订购信息 Ordering Information

857038

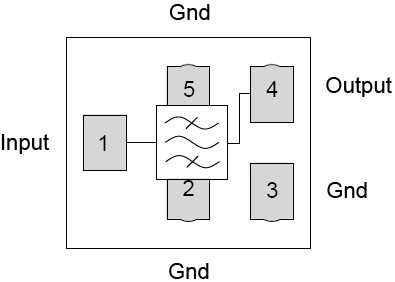

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
857038 数据资料DataSheet下载：PDF	Rev.V2	2 页
