880374 1090 MHz SSR/IFF BAW 滤波器
The 880367 and 880374 (1030 MHz and 1090 MHz, respectively) are designed to offer narrow-band signal control with low insertion loss at center frequency and high selectivity with neighboring frequencies. The filters are self-matched to 50 ohms and are surface-mountable on any PCB. These filters also offer a tremendous size and weight advantage over ceramic filters (10x smaller) and cavity filters (100x smaller) while still being robust enough for high-reliability and Defense and Aerospace applications.
技术特性
- Usable bandwidth of 16 MHz
- Low loss
- High selectivity
- Single-ended operation
- Ceramic chip-scale Package (CSP)
- Small size
- Hermetic, RoHS compliant, lead-free

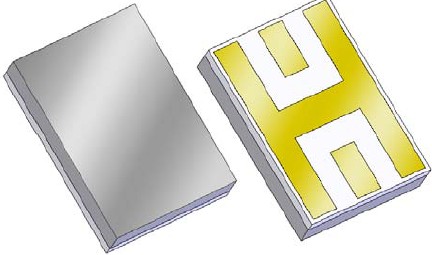

880374 产品实物图
|
应用领域 APPLICATION
技术指标
| 带宽(MHz) |
通带插入损耗 (dB) |
陷波频率抑制 (dB) |
封装 (mm) |
| 14 |
2.5 |
40 |
3.70 x 2.57 |
订购信息 Ordering Information
| Part No. |
Description |
| 880374 |
packaged part |
| 880374 Eval Board |
evaluation board |
功能框图 Functional Block Diagram
|
