885008 ISM 陷波滤波器

The TriQuint 885008 is a high-performance Bulk Acoustic Wave (BAW) notch filter designed to reject emissions in the WiFi bands, while passing both the 2.3 GHz and 2.6 GHz WiMAX / LTE / TD-LTE bands. The 885008 is specifically designed to enable coexistence of WiFi and 4G signals within the same device or in close proximity to one another. The part is specified to provide low loss in the entire USA WiMAX band (2496 - 2690 MHz) as well as LTE Bands 7 and 38. The filter also passes the 2.3GHz band: WiBro, WCS, Band 40 and the Indian 4G band. This part uses inexpensive packaging techniques to achieve an industry-leading 1.7 x 1.3 x .46 mm package. The filter exhibits excellent power handling capabilities. This part is referenced on multiple designs with the leading WiMAX chipset makers.

技术特性
  • Rejects 2.4 GHz WiF / ISM bands
  • Low Loss in 2496-2690 MHz bands: WiMAX / LTE / TD-LTE / Bands 7 & 38
  • Low Loss in 2300-2370 MHz bands: WiMAX / WCS / WiBro / Band 40 / Indian 4G band
  • Industry-leading small size: 1.7 x 1.3 x .46 mm
  • Power handling: +28 dBm (avg), +37.5 dBm (peak)
  • Performance -30 to +85 ºC
  • Ceramic chip-scale Package (CSP)
  • Hermetically sealed
  • RoHS compliant, lead-free
885008 产品实物图

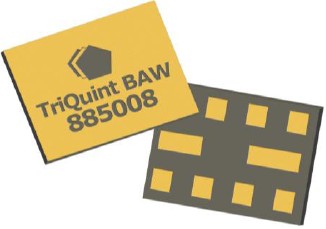

885008 产品实物图

应用领域 APPLICATION
  • Handsets
  • Mobile Routers
  • Portable Hotspots
  • Smart Meters
技术指标
带宽(MHz) 通带插入损耗 (dB) 陷波频率抑制 (dB) 封装 (mm)
71 - 25 1.3 x 1.7
订购信息 Ordering Information
Part No. Description
885008 packaged part
885008-EVB evaluation board
功能框图 Functional Block Diagram

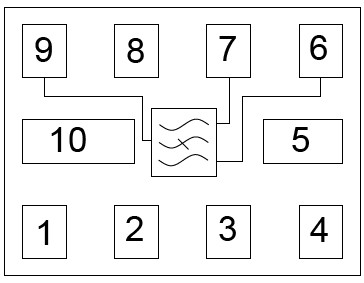

885008 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
885008:S 参数
885008 数据资料DataSheet下载:PDF Rev.V2 2 页
