AH22S-G CATV 双 MESFET 放大器

The AH22S-G is a high dynamic range amplifier targeting cable TV markets. The combination of gain flatness, high linearity, and bandwidth makes it ideal for CATV distribution, cable modem, and laser diode driver applications. The device uses two matched devices and is ideal for operation in a push-pull configuration to achieve high second order linearity. A mature and reliable GaAs MESFET technology is employed to maximize linearity at low power dissipation. The dual amplifier is housed in an industry standard surface-mount SOIC-8 package with all devices being 100% RF and DC tested. This device is available in a lead-free / green / RoHS-compliant package with NiPdAu plating material on the leads. It is compatible with both lead-free and lead soldering processes.

技术特性
  • 50 to 1000 MHz
  • ±0.2 dB gain flatness
  • +25 dBm P1dB
  • -74 dBc CTB / CSO
  • +39dBmV/channel, 77 channels
  • +43 dBm Output IP3
  • +77 dBm Output IP2
  • Matched amplifiers for a push-pull configuration
  • +5V single positive supply
  • MTTF > 1000 years
订购信息 Ordering Information
AH22S-G  High Dynamic Range CATV Amplifier(lead-free/green/RoHS-compliant SOIC8 Pkg)
AH22S-PCB  Push-pull CATV Evaluation Board
技术指标
频率(GHz) 增益(dB) P1dB (dBm) OIP3 (dBm) NF (dB) Vd (V) Id (mA) Pout (dBmV/ch, 77ch) 封装形式
0.05 - 1 11.1 25.5 43 4.5 5 320 39 SOIC-8
应用领域 APPLICATION
  • CATV / DBS
  • Repeaters

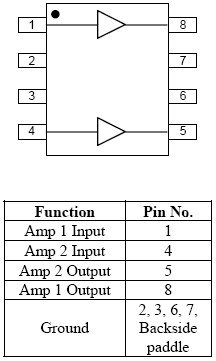

功能框图 Functional Block Diagram

AH22S-G 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
AH22S-G:S 参数
AH22S-G封装信息:pdf
AH22S-G封装信息:dwg
AH22S-G材料清单 :pdf
AH22S-G封装材料清单 - SOT-89 :pdf
AH22S-G资质报告
AH22S-G布局文件
AH22S-G 数据资料DataSheet下载:pdf Rev.V2 2 页
