ECG002B-G 级联增益模块

The TriQuint ECG002B-G is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 1000 MHz, the ECG002B-G typically provides 20 dB of gain, +29 dBm Output IP3, and +15.5 dBm P1dB. The ECG002B-G consists of a Darlington-pair amplifier using the high reliability InGaP / GaAs HBT process technology and only requires DC-blocking capacitors, a bias resistor and an inductive RF choke for operation. The device is ideal for wireless applications and is available in low-cost, surface-mountable plastic lead-free / green / RoHS-compliant SOT-89 package. It is also available in a SOT-86 package as the ECG002C-G and a SOT-363 package as the ECG002F-G. All devices are 100% RF and DC tested. The broadband MMIC amplifier can be directly applied to various current and next generation wireless technologies such as GPRS, GSM, CDMA, and W-CDMA. In addition, the ECG002B-G will work for other various applications within the DC to 6 GHz frequency range such as CATV and mobile wireless.

技术特性
  • DC to 6 GHz
  • 20 dB gain @ 1 GHz
  • +15.5 dBm P1dB @ 1 GHz
  • +29 dBm OIP3 @ 1 GHz
  • 3.7 dB noise figure
  • Internally matched to 50 Ohm
  • Lead-free / green / RoHS compliant
  • SOT-89 package
技术指标
频率(GHz) 增益(dB) P1dB (dBm) OIP3 (dBm) NF (dB) Min. Vcc (V) Vdevice (V) Icc (mA) 封装类型
DC - 6 20 15.5 29 3.7 5 3.9 45 SOT-89
订购信息 Ordering Information
ECG002B-G  InGaP HBT Gain Block (lead-free/green/RoHS-compliant SOT-89 package)
ECG002C-G  InGaP HBT Gain Block (lead-free/green/RoHS-compliant SOT-86 package)
ECG002F-G  InGaP HBT Gain Block (lead-free/green/RoHS-compliant SOT-363 package)



应用领域 APPLICATION
  • CATV / DBS
  • Defense / Homeland Security
  • Fixed Wireless
  • Industrial, Scientific and Medical (ISM)
  • Mobile Infrastructure

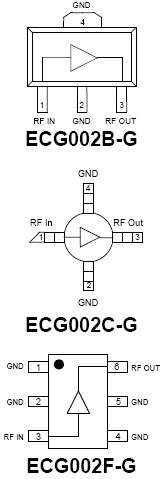

功能框图 Functional Block Diagram

ECG002B-G 功能框图
