ECP200D-G 2 W 线性放大器
The TriQuint ECP200D-G is a high dynamic range driver amplifier in a low-cost surface mount package. The InGaP / GaAs HBT is able to achieve high performance for various narrowband-tuned application circuits with up to +51 dBm OIP3 and +33 dBm of compressed 1dB power. It is housed in an industry standard in a lead-free / green / RoHS-compliant 16-pin 4x4mm QFN surface mount package. All devices are 100% RF and DC tested. The ECP200D-G is targeted for use as a driver amplifier in wireless infrastructure where high linearity and medium power is required. An internal active bias allows the ECP200D-G to maintain high linearity over temperature and operate directly off a single +5V supply. This combination makes the device an excellent candidate for transceiver line cards in current and next generation multi-carrier 3G base stations.
技术特性
- 400 to 2300 MHz
- 18 dB gain @ 900 MHz
- +33 dBm P1dB
- +51 dBm Output IP3
- +5V single positive supply
- Lead-free / green / RoHS compliant
- 16pin 4 mm QFN package
订购信息 Ordering Information
| ECP200D-G |
2 Watt, High Linearity InGaP HBT Amplifier (lead-free/green/RoHS-compliant 16-pin 4x4mm QFN package) |
| ECP200D-PCB900 |
900 MHz Evaluation Board |
| ECP200D-PCB1960 |
1960 MHz Evaluation Board |
| ECP200D-PCB2140 |
2140 MHz Evaluation Board |
|
应用领域 APPLICATION
- Mobile Infrastructure
- Repeaters
技术指标
| 频率(GHz) |
增益(dB) |
P1dB (dBm) |
OIP3 (dBm) |
NF (dB) |
Vdd (V) |
Idd (mA) |
封装信息 |
| 0.4 - 2.3 |
18 |
33 |
49 |
8 |
5 |
800 |
4x4mm QFN16 |

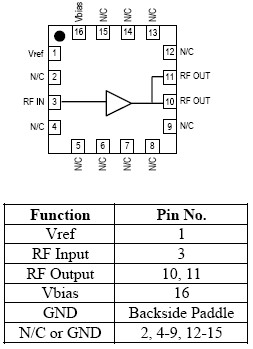

功能框图 Functional Block Diagram
|
