T1L2003028-SP 30 W, 28 V, 500 MHz - 2 GHz LDMOS RF 功率晶体管
The TriQuint T1L2003028-SP is a PowerBandâ„¢ discrete LDMOS enhancement mode RF power transistor designed to operate from 500 MHz to 2 GHz in wideband circuits. The device has an instantaneous bandwidth P1dB output power of 30 W across the entire band when operated in the TriQuint wideband test fixture. The T1L2003028-SP can also be used in narrow band applications and is rated at 45 W P1dB at 2 GHz.
技术特性
- Exceptional instantaneous bandwidth performance from 500 MHz to 2 GHz
- Increased efficiency results in significant advantages
- Smaller and lighter systems
- Reduced system component costs
- Reduced energy consumption
- Typical performance ratings
- Wideband 500 MHz to 2 GHz (as tested in TriQuint wideband fixture):
- 10 dB gain
- 45% efficiency
- 30 Watt P1dB
- Narrowband up to 2 GHz:
- 14 dB gain
- 59% efficiency
- 45 Watt P1dB
技术指标
| 技术 |
频段 |
工作电压 |
P1dB (W) |
增益(dB) |
效率(%) |
宽带评估板 |
| LDMOS |
500MHz - 2.0GHz |
28V |
30 |
10 |
60 |
T1L2003028-SPTF |
|
应用领域 APPLICATION
- Avionics
- General Purpose
- Jammers
- Radar
- Wideband Communications
订购信息 Ordering Information

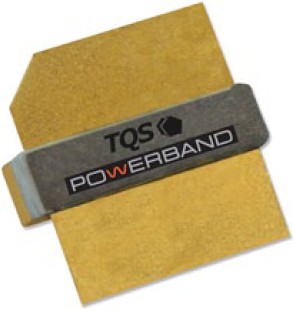

T1L2003028-SP 产品实物图
|
