TGA1141 Ka 波段中等功率放大器

The TriQuint TGA1141 is a three stage MPA MMIC design using TriQuint’s proven 0.25 um Power pHEMT process. The TGA1141 is designed to support a variety of millimeter wave applications including point-to-point digital radio and point-to-multipoint communications. The three stage design consists of a 200 um input device driving a 480um interstage device followed by an 800um output device. The TGA1141 provides 25dBm nominal output power at 1dB compression across 19-27GHz. Typical small signal gain is 22 dB. The TGA1141 requires minimum off-chip components. Each device is 100% DC and RF tested on-wafer to ensure performance compliance. The device is available in chip form.

技术特性
  • 0.25 um pHEMT Technology
  • 17 dB Nominal Gain
  • 31 dBm Pout @ P1dB,
  • Psat 33dBm @ 6V , 34dBm @7V
  • Bias 6 - 7V @ Iq = 880 mA, Id = 1.3 A at Psat
  • Chip Dimensions 4.13 x 3.30 x 0.1 mm
应用领域 APPLICATION
  • Ka Band Satellite Communications (Satcom)
  • Military Radar Systems
  • Point-to-Point Radio
订购信息 Ordering Information
  • TGA1141
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
33-36 31 17 - 6-7 880

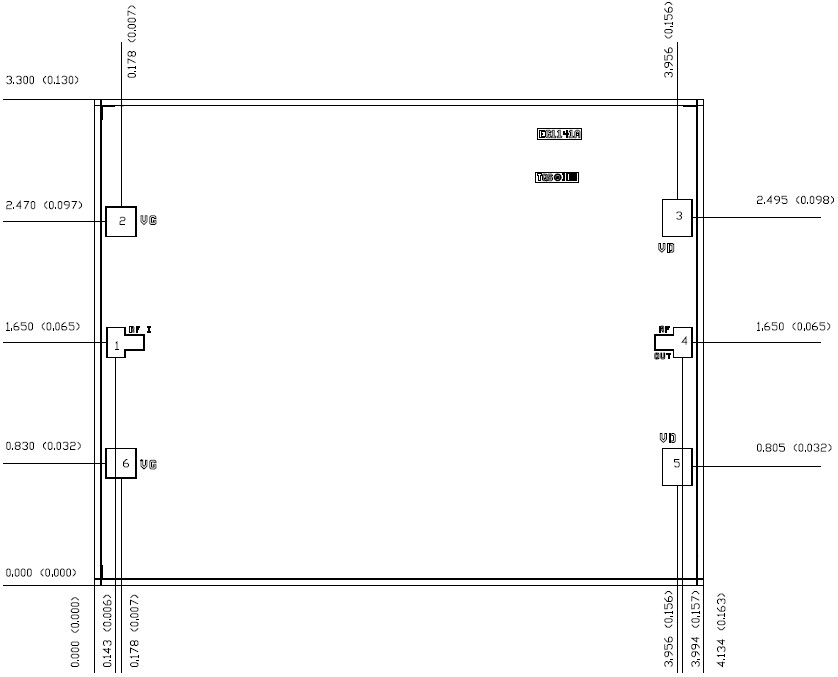

机械图样Mechanical Drawing
TGA1141 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA1141:S 参数
TGA1141 数据资料DataSheet下载:PDF Rev.V2 2 页
