技术特性

• 33 dBm midband Pout
• 32 dB nominal gain
• 10 dB typical return loss
• Built-in directional power detector with reference
• 0. 50 um pHEMT technology
• Bias conditions: 7 V, 680 mA
• Chip dimensions: 2.5 x 1.4 x 0.1 mm (98 x 55 x 4 mils)

应用领域 APPLICATION

• Electronic Counter-Countermeasures (ECCM)
• X and Ku Band Point-to-Point Radio

订购信息 Ordering Information

• TGA2503

技术指标

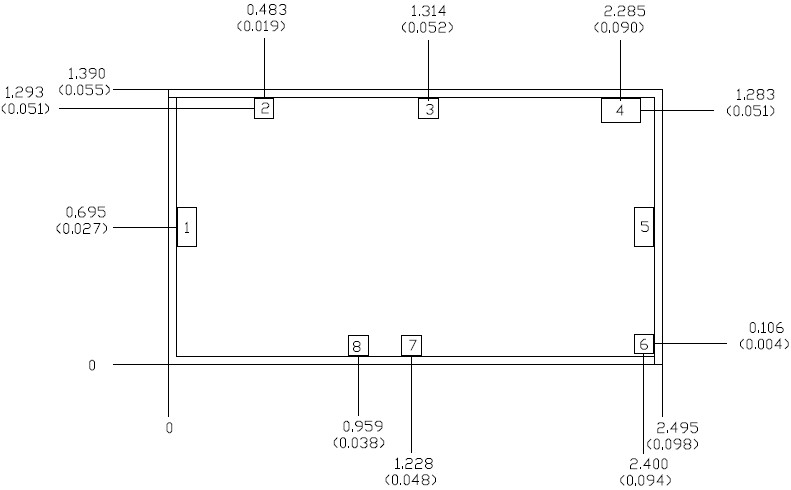

机械图样Mechanical Drawing
