技术特性

• 34 dBm midband Psat
• 26 dB nominal gain
• 7 dB typical input return loss
• 12 dB typical output return loss
• 12.5 to17 GHz frequency range
• Directional power detector with reference
• 0.25um pHEMT 3MI technology
• Bias conditions: 7.5 V, 650 mA
• Chip dimensions: 2.02 x 1.38 x 0.10 mm (0.080 x 0.054 x 0.004 inches)

应用领域 APPLICATION

• Point-to-Point Radio
• VSAT

技术指标

订购信息 Ordering Information

• TGA2510

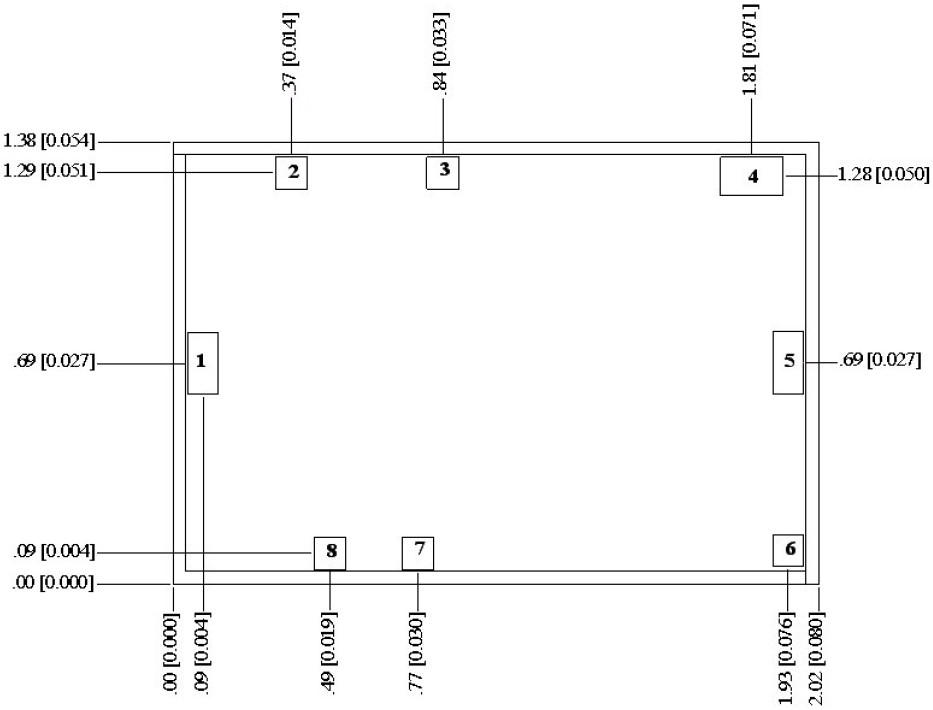

机械图样Mechanical Drawing
