TGA2514 Ku 波段 6.5W功率放大器
The TriQuint TGA2514 is a compact 6.5 W Ku band power amplifier which operates from 13 - 18 GHz. The TGA2514 is designed using TriQuint's proven standard 0.25-um gate pHEMT production process. The TGA2514 provides a nominal 38 dBm of saturated power with a small signal gain of 24 dB. Typical return loss is 14 dB. The TGA2514 is 100% DC and RF tested on-wafer to ensure performance compliance.
技术特性
- Frequency range: 13 to 18 GHz
- 38.5 dBm nominal Psat from 13.75 to 14 GHz
- 38 dBm nominal Psat from 13 to 16 GHz
- 37.5 dBm nominal Psat from 16 to 18 GHz
- 33 dBc IMD3 @ 27 dBm Pout/tone @ 14 GHz
- 24 dB nominal gain
- 12 dB nominal return loss
- 0.25-um 3MI pHEMT technology
- Bias conditions: 8 V @ 2.6 A Idq
- Chip size: 2.87 x 3.90 x 0.10 mm (0.113 x 0.154 x 0.004)
应用领域 APPLICATION
- Ku Band VSAT Transmitters
- Point-to-Point Radio
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 13-18 |
38 |
24 |
- |
8 |
2600 |
订购信息 Ordering Information

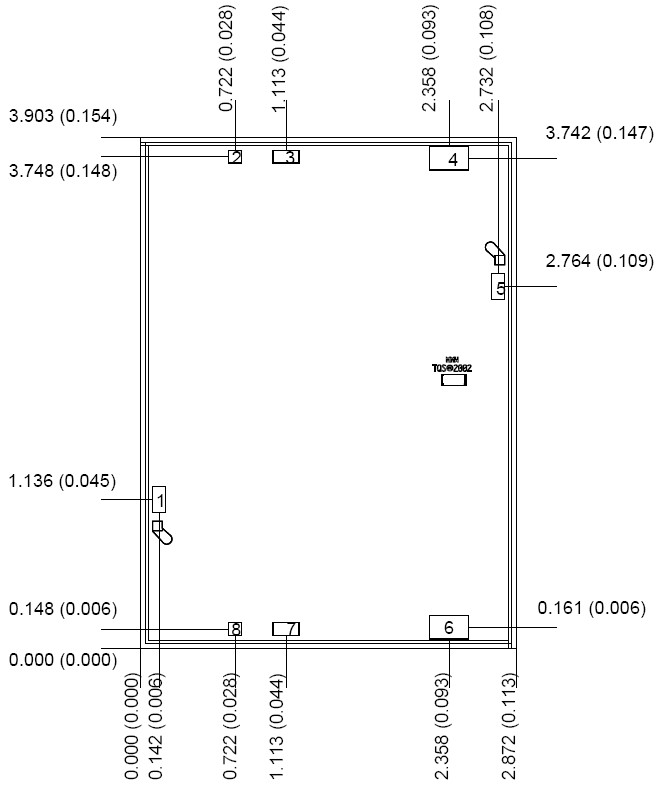

机械图样Mechanical Drawing
 |
