TGA2701-SM 3 W C频段封装功率放大器
The TriQuint TGA2701-SM is a packaged 35 dBm power amplifier for C band applications. The TGA2701-SM provides a nominal 35 dBm of output power at an input power level of 22 dBm with a small signal gain of 18 dB. Nominal TOI is 42 dBm and noise figure is 7.5 dB. The TGA2701-SM is a QFN 6x6 mm surface mount package. It is ideally suited for low cost emerging markets such as point-to-point radio and communications. The part is lead-free and RoHS compliant.
技术特性
- Frequency range: 5.9 to 8.5 GHz
- Power: 35 dBm Psat, 34 dBm P1dB
- Gain: 18 dB
- TOI: 42 dBm
- PAE: 37%
- NF: 7.5 dB
- Bias: Vd = 6 V, Id = 1.0 A, Vg = -0.6 V typical
- Package dimensions: 6 x 6 x 0.85 mm

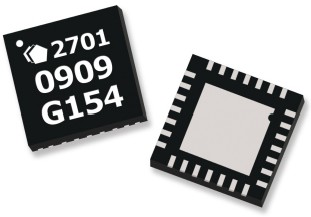

TGA2701-SM 产品实物图
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 5.9 - 8.5 |
35 |
18 |
37 |
6 |
1000 |
应用领域 APPLICATION
- Communications Systems
- Point-to-Point Radio
订购信息 Ordering Information

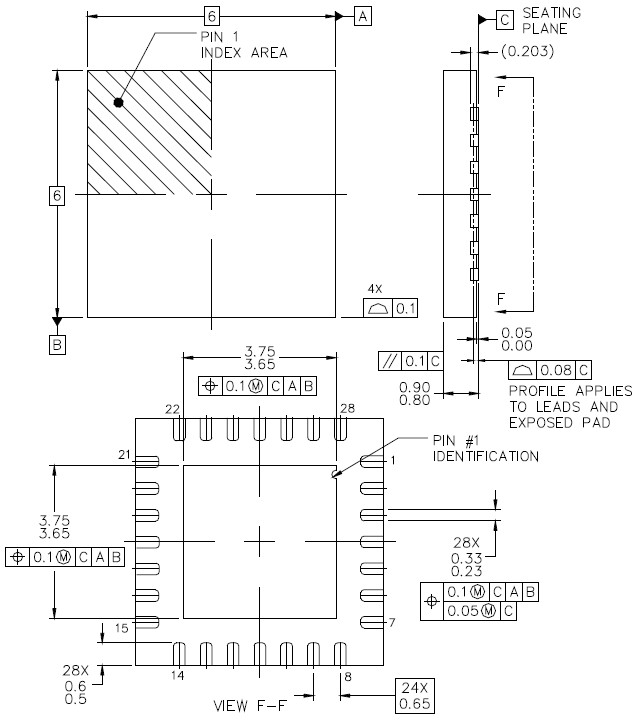

机械图样Mechanical Drawing
 |
