TGA2703-SM 3.5 GHz WiMAX驱动器/功率放大器

TGA2703-SM is a linear amplifier operating for 802.16 broadband wireless applications in 3.3 to 3.8 GHz frequency band. The power amplifier delivers 24 dB of small-signal gain, 30dBm P1dB and 40 dBc IMR3 at 21dBm output power per tone from a single +6 V power supply. It has 2.5% EVM at 22dBm output power. The TGA2703 incorporates a 13 dB step attenuator function and a power sampling port. The 50 Ohm device requires minimum external components for operation and is packaged in a low-cost, surface mount 5 x 5 QFN style package. The part is lead-free and RoHS compliant. Evaluation boards are available.

技术特性
  • 3.3 to 3.8 GHz bandwidth
  • 41 dBc IMR3 @ 21 dBm Pout/tone
  • 24 dB nominal gain
  • 30 dBm nominal P1dB
  • 2.5% EVM at 22 dBm output power
  • 13 dB step attenuator function
  • Power sample port
  • -1.5 V Vg voltage to shut down drain current
  • Self bias: +6 V 770mA
  • Package: 5.0 x 5.0 x 0.9 mm QFN

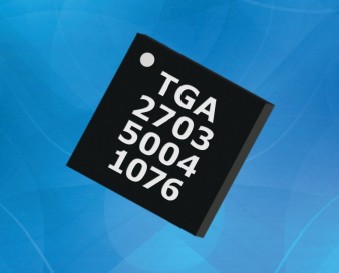

TGA2703-SM 产品实物图

TGA2703-SM 产品实物图

技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
3.3-3.8 30 24 - 6 770
应用领域 APPLICATION
  • Fixed Wireless
  • WiMAX
订购信息 Ordering Information
Part No. Description
TGA2703-SM 5mm x 5mm QFN
TGA2703-SM T/R 5mm x 5mm QFN, TAPE AND REEL

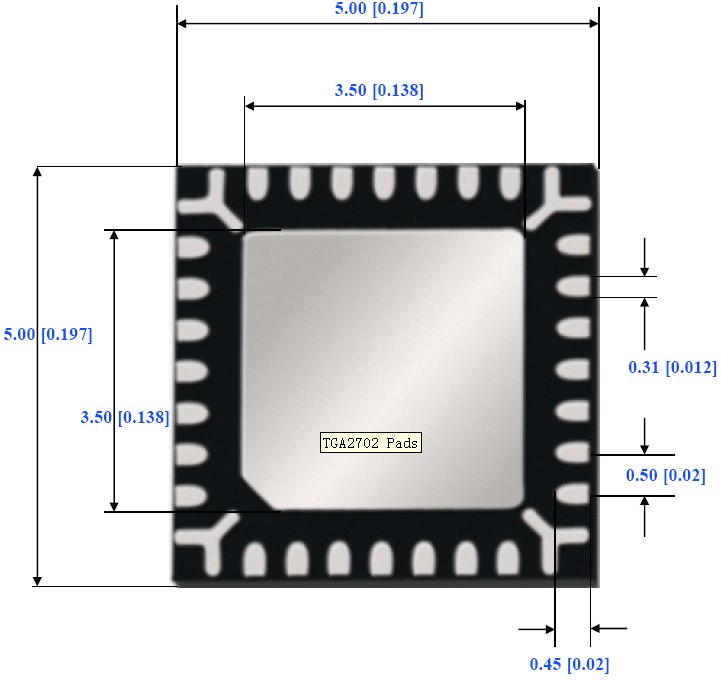

机械图样Mechanical Drawing
TGA2703-SM 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA2703-SM:S 参数
TGA2703-SM材料清单
TGA2703-SM布局文件
TGA2703-SM 数据资料DataSheet下载:PDF Rev.V2 2 页
