TGA2704 9-10.5 GHz 高功率放大器

The TriQuint TGA2704 is a high power amplifier MMIC for 9 to 10.5 GHz applications. The part is designed using TriQuint's 0.25um 3MI pHEMT production process. The TGA2704 nominally provides 38 dBm output power and 40% PAE for bias of 9 V, 1.05 A. The typical gain is 20 dB. The TGA2704 is ideally suited for low cost markets such as point-to-point radio and communications. The part is 100% DC and RF tested on-wafer to ensure performance compliance. The TGA2704 has a protective surface passivation layer providing environmental robustness. The part is lead-free and RoHS compliant.

技术特性
  • Frequency range: 9.0 to 10.5 GHz
  • 38 dBm nominal output power
  • 20 dB nominal gain
  • Bias: 7 to 9 V, 1.4 A & 1.05 A (~ 2 A under RF drive)
  • 0.25 um 3MI pHEMT technology
  • Chip dimensions 3.52 x 2.61 x 0.10 mm (0.139 x 0.103 x 0.004 in)
订购信息 Ordering Information
  • TGA2704
应用领域 APPLICATION
  • Communications Systems
  • Point-to-Point Radio
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
9-10.5 38 20 >40% 7-9 1050

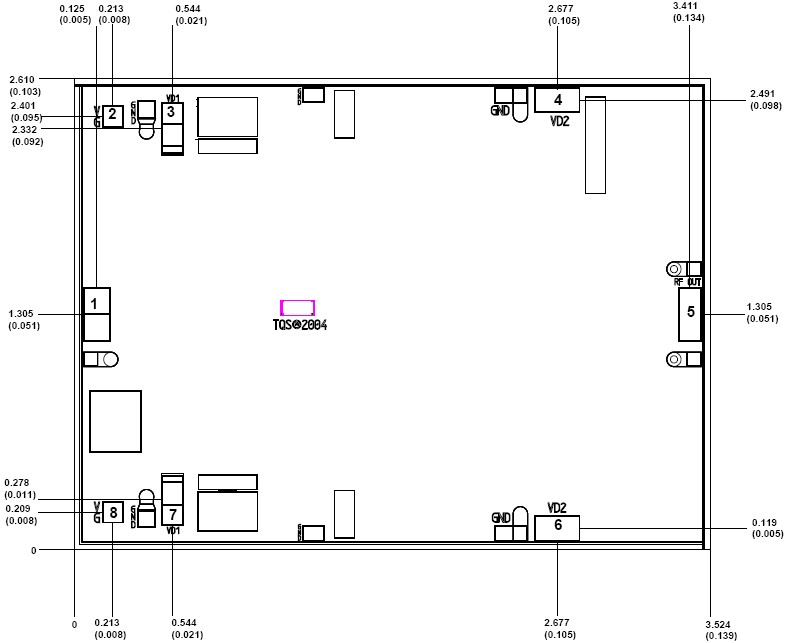

机械图样Mechanical Drawing
TGA2704 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA2704:S 参数
TGA2704 数据资料DataSheet下载:PDF Rev.V2 2 页
