TGA2706-SM 2W C波段带封装功率放大器
The TriQuint TGA2706-SM is a packaged 2 Watt power amplifier for C band applications. The part is designed using TriQuint's proven standard 0.5um E/D pHEMT production process. The TGA2706-SM provides a nominal 34 dBm of output power at an input power level of 12 dBm with a small signal gain of 31 dB. Nominal TOI is 42 dBm and noise figure is 7 dB. The TGA2706-SM is a QFN 5 x 5 mm surface mount package. It is ideally suited for low cost emerging markets such as point-to-point radio and communications. The part is lead-free and RoHS compliant. Evaluation boards are available upon request.
技术特性
- Frequency range: 5.5 to 8.5 GHz
- Power: 34 dBm Psat, 32 dBm P1dB
- Gain: 31 dB
- TOI: 42 dBm
- NF: 7 dB
- Bias: Vd = 6 V, Id = 1.26 A, Vg = +0.6 V typical
- Package dimensions: 5 x 5 x 0.85 mm

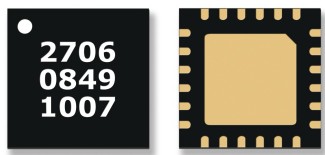

TGA2706-SM 产品实物图
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 5.5 - 8.5 |
34 |
31 |
7 |
6 |
1260 |
应用领域 APPLICATION
- Communications Systems
- Point-to-Point Radio
订购信息 Ordering Information
| Part |
PackageStyle |
| TGA2706-SM |
QFN 5x5 Surface Mount |

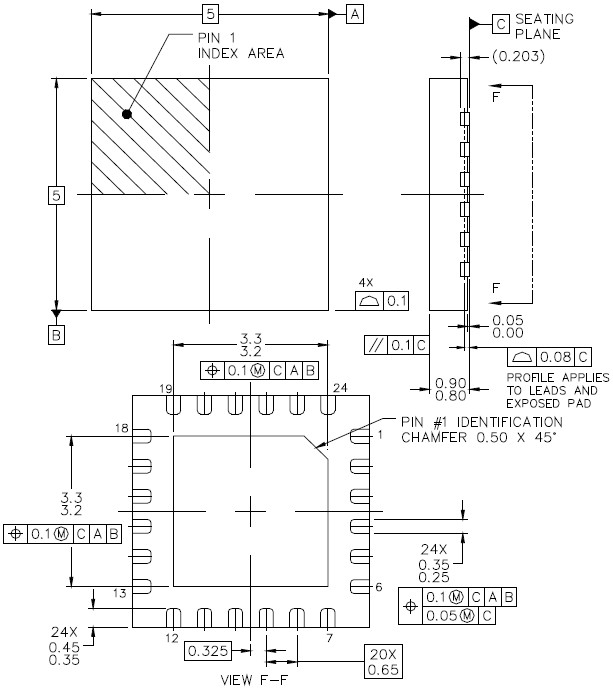

机械图样Mechanical Drawing
 |
