TGA2710 10.5-12 GHz 高功率放大器

The TriQuint TGA2710 is a high power amplifier MMIC for 10.5 to 12 GHz applications. The part is designed using TriQuint's 0.25 um 3MI pHEMT production process. The TGA2710 nominally provides 38 dBm output power and 41% PAE for bias of 9 V, 1.05 A. The typical gain is 19 dB. The part is ideally suited for low cost markets such as point-to-point radio and communications. The TGA2710 is 100% DC and RF tested on-wafer to ensure performance compliance. The TGA2710 has a protective surface passivation layer providing environmental robustness. The part is lead-free and RoHS compliant.

技术特性
  • Frequency range: 10.5 to 12.0 GHz
  • 38 dBm nominal output power
  • 19 dB nominal gain
  • Bias: 7 to 9 V, 1.4 A & 1.05 A (~ 2 A under RF drive)
  • 0.25 um 3MI pHEMT technology
  • Chip dimensions: 3.52 x 2.61 x 0.10 mm (0.139 x 0.103 x 0.004 in)
订购信息 Ordering Information
  • TGA2710
应用领域 APPLICATION
  • Communications Systems
  • Point-to-Point Radio
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
10.5-12 38 19 >40% 7-9 1050
机械图样Mechanical Drawing

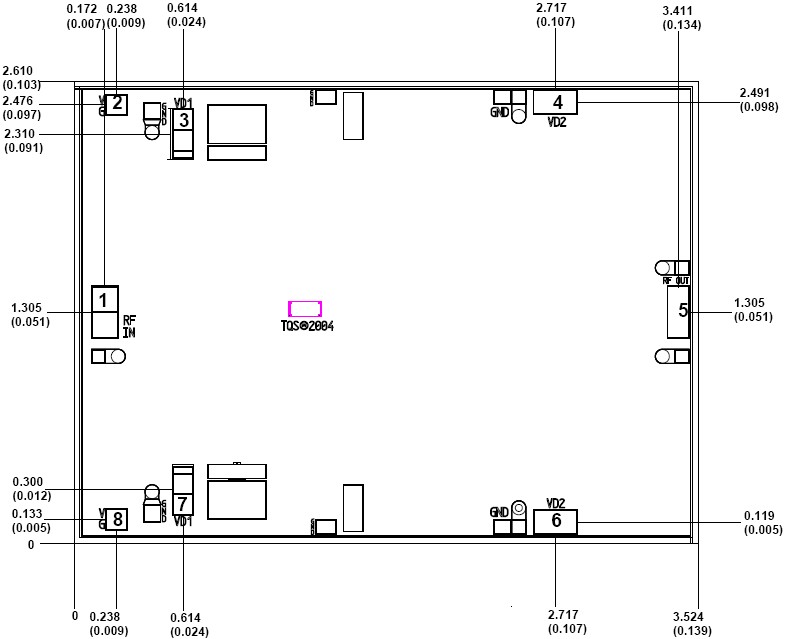

TGA2710 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA2710:S 参数
TGA2710 数据资料DataSheet下载:PDF Rev.V2 2 页
