TGA2807-SM CATV线性放大器

The TriQuint TGA2807-SM is an ultra-linear packaged gain block which operates from 40 MHz to 1 GHz. It provides flat gain along with ultra-low distortion. It also provides high output power with low DC power consumption. This amplifier is ideally suited for use in CATV head end systems or other applications requiring low noise and low distortion. The part is lead-free and RoHS compliant. Evaluation boards are available upon request.

技术特性
  • 40 to 1000 MHz bandwidth
  • DOCSIS 3.0 compliant
  • ACPR: -69 dBc at 61 dBmV Pout
  • Pdiss: 1.9 W
  • 18.5 dB typical gain
  • 28 dBm Psat
  • 2.3 dB typical noise figure
  • 20 dB typical output return loss
  • 6 V single supply
  • 318 mA current draw
  • 5 x 5 mm QFN package
TGA2807-SM 产品实物图

TGA2807-SM 产品实物图

技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
0.04 - 1 28 18.5 2.3 6 318
订购信息 Ordering Information
Part No.  Description
TGA2807-SM  CATV Ultra Linear Gain Amplifier(lead-free/RoHS compliant 5x5 QFN Pkg)

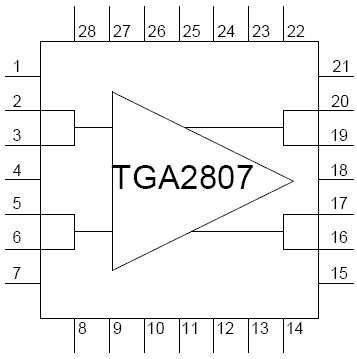

功能框图 Functional Block Diagram

TGA2807-SM 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA2807-SM:S 参数
TGA2807-SM材料清单
TGA2807-SM布局文件
TGA2807-SM 数据资料DataSheet下载:PDF Rev.V2 2 页
