TGA4031-SM 17-37 GHz MPA/放大器

The TriQuint TGA4031-SM is a medium power amplifier and multiplier for wide band 17 to 37 GHz applications. The part is designed using TriQuint's 0.15um power pHEMT process. The TGA4031-SM provides a nominal 20 dB small signal gain with 22 dBm maximum output power. For 2x and 3x multiplier function, the TGA4031-SM provides 15 dBm typical output power @ 9 dBm Pin. This part is ideally suited for applications such as point-to-point radio, electronic warfare (EW), instrumentation and frequency multipliers. The part is lead-free and RoHS compliant. Evaluation boards are available upon request.

技术特性
  • RF output frequency range: 17 to 37 GHz
  • 20 dB nominal gain
  • 22 dBm nominal output maximum power
  • 2x and 3x multiplier function
  • Bias: Vd = 5 V, Id = 140 mA
  • Package dimensions: 3.0 x 3.0 x 1.1 mm
订购信息 Ordering Information
Part  Package Style
TGA4031-SM  3X3 QFN
TGA4031-SM 产品实物图

TGA4031-SM 产品实物图

技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
17-37 19 20 - 5 140
应用领域 APPLICATION
  • Electronic Warfare
  • Frequency Multipliers
  • Instrumentation
  • Point-to-Point Radio

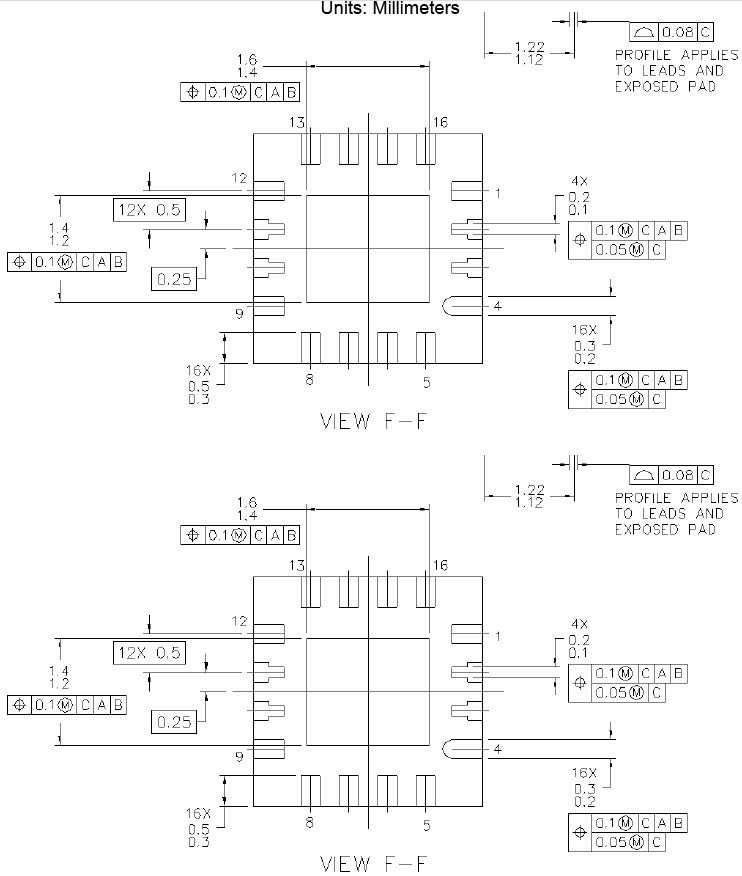

机械图样Mechanical Drawing
TGA4031-SM 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA4031-SM:S 参数
TGA4031-SM材料清单
TGA4031-SM布局文件
TGA4031-SM 数据资料DataSheet下载:PDF Rev.V2 2 页
