TGA4505 4 W Ka 波段高功率放大器
The TriQuint TGA4505 is a compact 4 Watt high power amplifier MMIC for Ka band applications. The part is designed using TriQuint's proven standard 0.25 um gate Power pHEMT production process. The TGA4505 provides a nominal 35.5 dBm of output power at 1 dB gain compression from 24 to 32 GHz with a small signal gain of 23 dB. The part is ideally suited for low cost emerging markets such as base station transmitters for satellite ground terminals and point-to-point radio. The TGA4505 is 100% DC and RF tested on-wafer to ensure performance compliance. The part is lead-free and RoHS compliant.
技术特性
- Frequency range: 24 to 31 GHz
- 23 dB nominal gain
- 35.5 dBm nominal P1dB @30 GHz
- 36.0 dBm nominal Psat @ 30 GHz
- 40 dBc at SCL Pout 20 dBm
- 0.25 um pHEMT 2MI technology
- Bias: 6 V @ 2.1 A Idq
- Chip dimensions: 4.29 x 3.02 x 0.05 mm (0.169 x 0.119 x 0.002 in)
应用领域 APPLICATION
- Point-to-Point Radio
- Satellite Ground Terminals
订购信息 Ordering Information
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 24-31 |
36 |
23 |
- |
6 |
2100 |

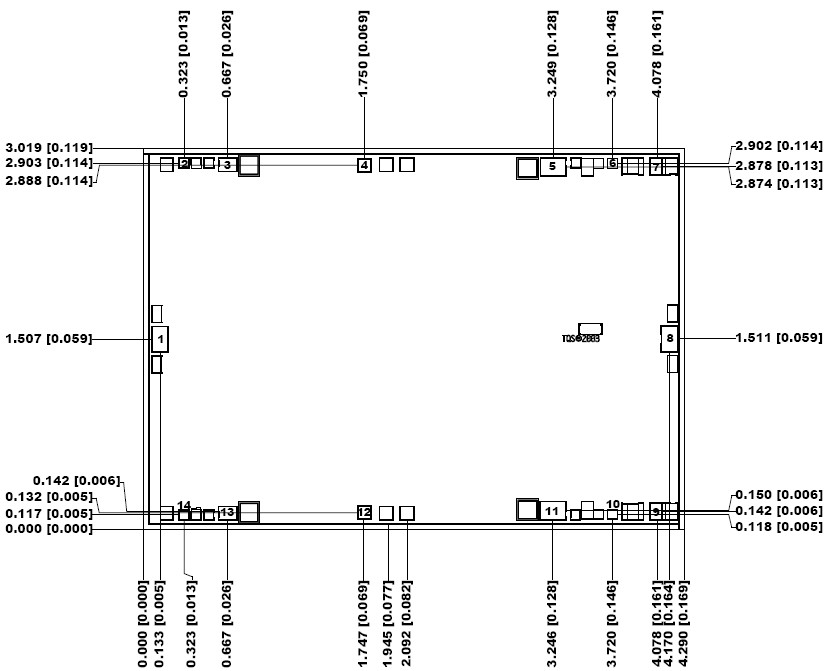

机械图样Mechanical Drawing
 |
