TGA4516-TS Ka 波段 2W 功率放大器
The TriQuint TGA4516-TS is a high power amplifier (HPA) MMIC for Ka band applications. The part is designed using TriQuint's 0.15um power pHEMT process and is soldered to a CuMo thermal spreader. The small chip size is achieved by utilizing TriQuint's 3 metal layer interconnect (3MI) design technology that allows compaction of the design over competing products. The TGA4516-TS provides > 33 dBm saturated output power and has typical gain of 18 dB at a bias of 6 V and 1050 mA (Idq). The current rises to 1.9 A under RF drive. This HPA is ideally suited for many applications such as military radar systems, Ka band satellite communications and point-to-point radios. The TGA4516-TS is 100% DC and RF tested on-wafer to ensure performance compliance. The part is lead-free and RoHS compliant.
技术特性
- 30 to 40 GHz bandwidth
- > 33 dBm nominal Psat @ Pin = 20 dBm
- 18 dB nominal gain
- Bias: 6 V, 1050 mA Idq (1.9 A under RF Drive)
- 0.15 um 3MI MMW pHEMT technology
- Thermal spreader dimensions: 2.921 x 2.438 mm
应用领域 APPLICATION
- Ka Band Satellite Communications (Satcom)
- Military Radar Systems
- Point-to-Point Radio
订购信息 Ordering Information
| Part |
Package Style |
| TGA4516-TS |
GaAs MMIC Die on Thermal Spreader |
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 30 - 40 |
33 |
18 |
- |
6 |
1050 |

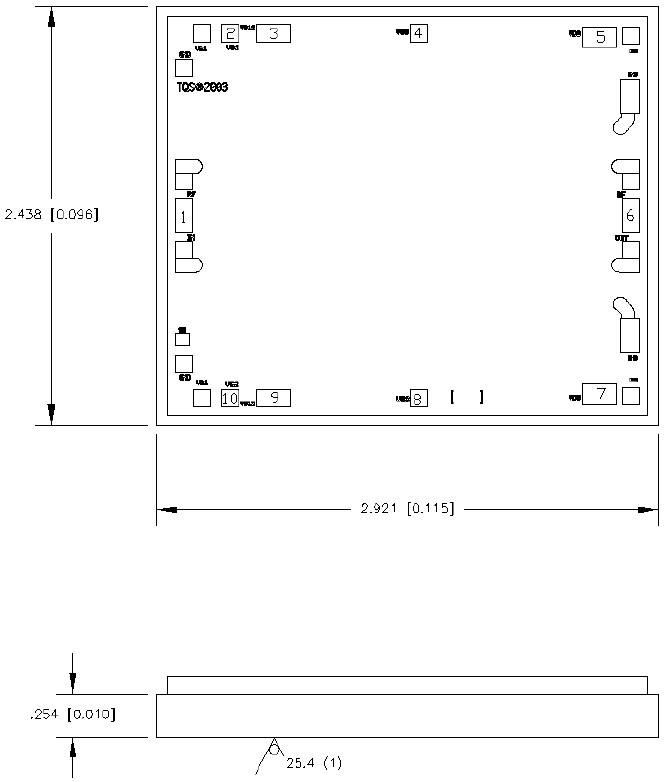

机械图样Mechanical Drawing
 |
