TGA4530 K 波段高线性功率放大器

The TriQuint TGA4530 is a high power amplifier MMIC for 17 to 21 GHz applications. The part is designed using TriQuint's 0.25 um 3MI pHEMT production process. The TGA4530 nominally provides 30 dBm output power @ 1dB gain compression and 42 dBm OTOI at a bias of 7 V and 825 mA. The typical gain is 20 dB. The part is ideally suited for low cost emerging markets such as point-to-point radio and K band satellite communications. The TGA4530 is 100% DC and RF tested on-wafer to ensure performance compliance. It has a protective surface passivation layer providing environmental robustness and is lead-free and RoHS compliant.

技术特性
  • Frequency range: 17 to 21 GHz
  • 20 dB gain
  • 30 dBm nominal P1dB
  • 42 dBm nominal OTOI
  • 20 dB return loss
  • Bias: 5 to 7 V @ 825 mA
  • 0.25 um 3MI pHEMT technology
  • Chip dimensions: 2.43 x 1.45 x 0.1 mm
应用领域 APPLICATION
  • K Band Satellite Communications (Satcom)
  • Point-to-Multipoint Radio
  • Point-to-Point Radio
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
17-21 30 20 - 5-7 825
订购信息 Ordering Information
  • TGA4530

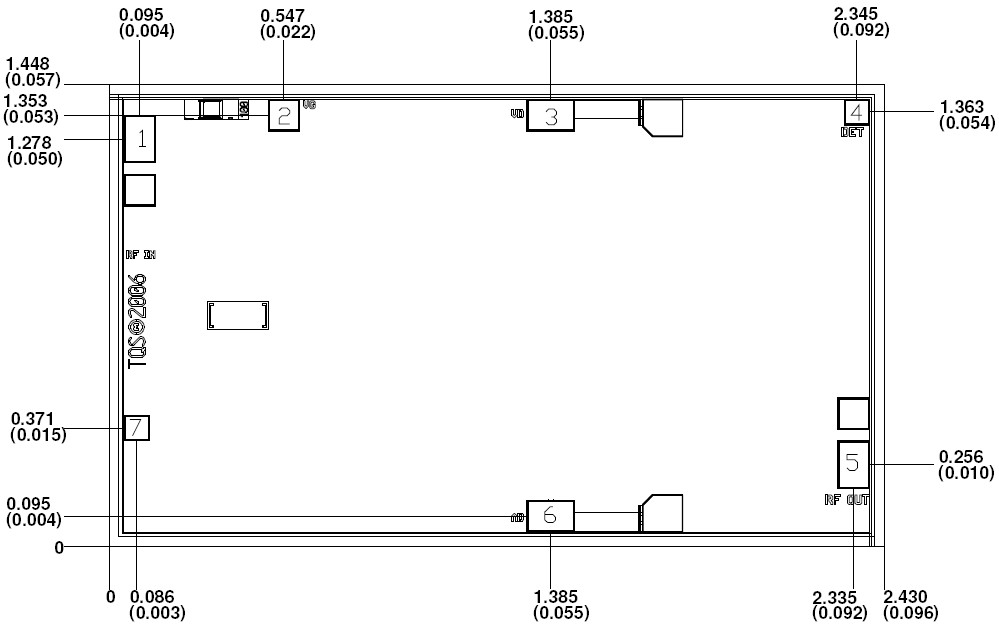

机械图样Mechanical Drawing
TGA4530 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA4530:S 参数
TGA4530 数据资料DataSheet下载:PDF Rev.V2 2 页
